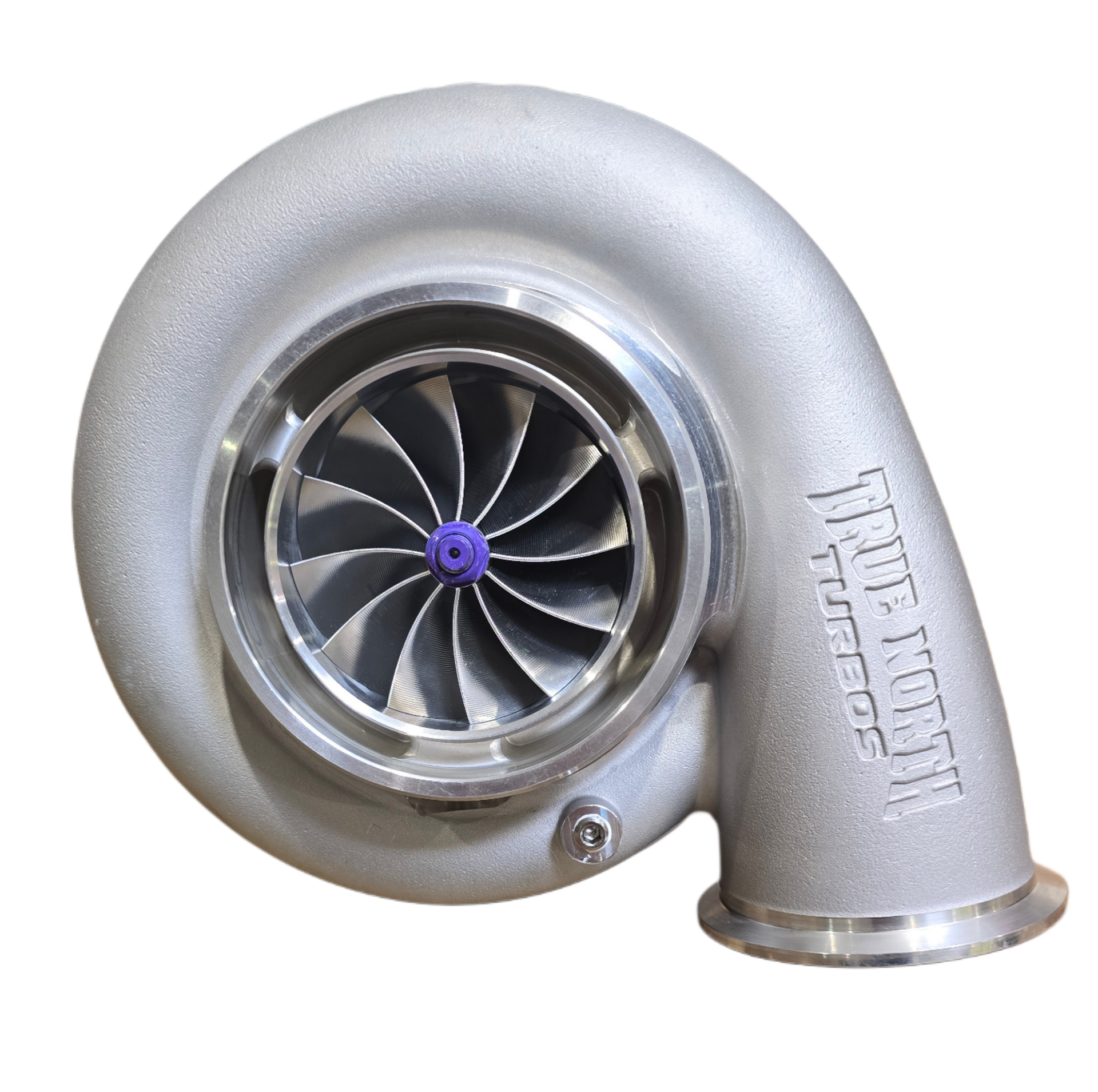

TNT492 – 92mm T6 Journal Bearing Turbocharger

Need a 1,500+ WHP capable 400-frame journal bearing turbocharger for grudge racing, no-prep, or extreme street builds? The TNT492 has been redesigned with our all-new 92mm 12-blade billet compressor wheel, delivering an even broader powerband while maintaining the airflow required for four-digit horsepower.

Replacing our previous 7+7 compressor wheel, the new 12-blade design was engineered to improve response, increase operating range, and provide exceptional drivability without sacrificing top-end performance. Whether you're chasing ETs at the track or building a high-horsepower street machine, the TNT492 is designed to keep pulling hard throughout the RPM range.

The TNT492 features our proven 103x92 turbine wheel, developed through years of research to reduce the backpressure commonly associated with maxed-out GT50-based 99x92 and 102x92 turbine combinations.

The result is a turbocharger that accelerates the rotating assembly more efficiently, builds boost quickly, and continues flowing where many comparable designs begin to fall off. The combination of our new 12-blade compressor wheel and high-flow 103x92 turbine delivers the broad power curve and top-end performance serious racers demand.

Key Specifications

• All-new 92mm 12-blade billet compressor wheel

• Journal bearing center section

• 103x92 high-flow turbine wheel

• T6 flange with multiple A/R options

• Supports 1,500+ wheel horsepower

• Broad powerband with excellent response

• Designed for grudge racing, no-prep, and extreme street applications

• Built to order

Frequently Asked Questions

What is the TNT492 rated for?

The TNT492 is capable of supporting 1,500+ wheel horsepower, depending on engine combination, fuel type, boost level, and supporting modifications.

What's new with the compressor wheel?

The TNT492 now features our all-new 92mm 12-blade billet compressor wheel. Replacing the previous 7+7 design, it was engineered to deliver a broader, more usable power curve, improved response, and the airflow required for extreme horsepower applications.

What makes the 103x92 turbine wheel different?

Our 103x92 turbine wheel was developed to reduce the backpressure commonly found in GT50-based 99x92 and 102x92 turbine designs. The result is quicker rotor acceleration, improved efficiency at high power levels, and stronger performance throughout the RPM range.
