TNT3R T4 Turbochargers

Clear all
6 products

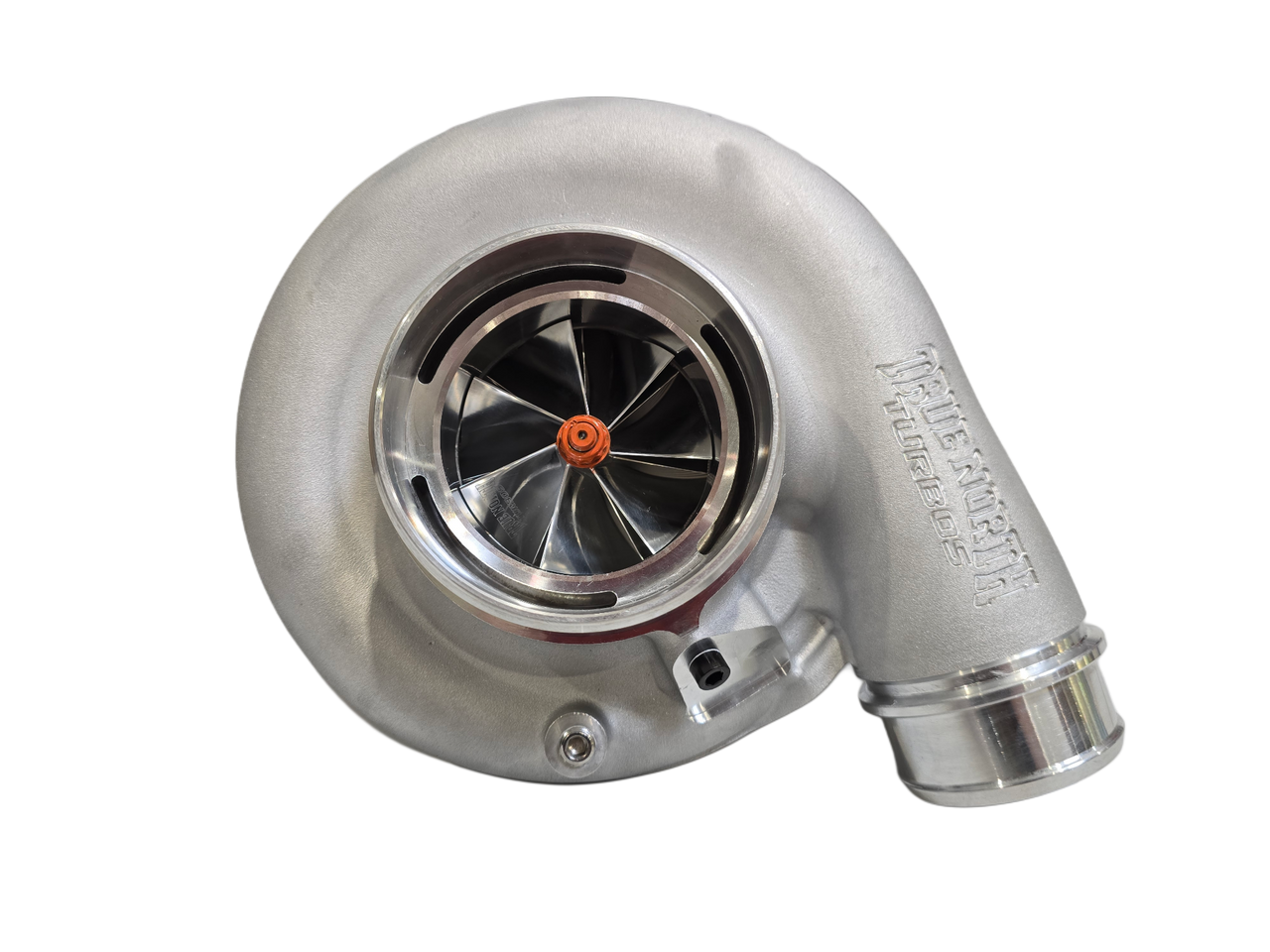

TNT3R T4 Turbochargers

The True North Turbos TNT3R series is a compact-frame T4 turbo lineup built for import, domestic, and diesel performance builds that need strong spool-up and a responsive powerband without stepping up to a larger frame turbo. Spanning 63mm to 80mm compressor inducers, the lineup supports 940 to 1,300 crank horsepower. Every TNT3R turbo is designed, machined, assembled, and balanced in Canada by Black Sheep Industries.

Shop TNT3R T4 Turbos

  • TNT363 63mm T4 | 940HP — the smallest frame in the lineup, built for the fastest spool and strongest low-end response.
  • TNT366 66mm T4 | 1,090HP — a step up in airflow while keeping quick spool characteristics. The most-installed size in the frame.
  • TNT369 69mm T4 | 1,120HP — a balanced option for builds wanting more top-end without giving up response.
  • TNT372 72mm T4 | 1,140HP — more airflow capacity for higher horsepower goals, and the first size offered with all three turbine wheels.
  • TNT376 76mm T4 | 1,210HP — built for builds pushing into bigger power while staying on the TNT3R frame.
  • TNT380 80mm T4 | 1,300HP — the largest TNT3R option, for builds wanting the most airflow this frame size supports.

Read those figures as ceilings, not targets. They are the maximum crank horsepower each compressor will support at the edge of its map. Our practical crossover to the 400 frame sits around 820 HP — well below the top of this lineup — because past that an S400 makes the same power with less strain and more headroom.

Choosing a TNT3R Size

Smaller wheel sizes in the TNT3R lineup (63–69mm) prioritize fast spool-up and daily-driver response, making them a strong fit for street cars and mild power builds. Larger sizes (72–80mm) trade a bit of low-end response for additional airflow and higher horsepower headroom, better suited to dedicated performance builds.

On this frame the turbine wheel matters as much as the compressor — the housings run 0.88 A/R open and 0.91 A/R divided, so A/R is not the lever it is on the 400 frame. Not sure which size fits your build? Send us your combo through the Turbo Spec Form and we'll spec it with you.

S300 Buying Guides

Frequently Asked Questions

What is the TNT3R turbo series?

TNT3R is True North Turbos' compact-frame T4 turbo lineup, ranging from 63mm to 80mm wheel sizes, built for import, domestic, and diesel performance applications.

How much horsepower do TNT3R turbos support?

From 940 crank horsepower on the TNT363 up to 1,300 on the TNT380. Those are compressor ceilings rather than build targets — around 820 HP is where we would normally move you to a 400-frame turbo.

Which TNT3R size should I choose?

Smaller sizes (63–69mm) are best for fast spool and daily-driver response. Larger sizes (72–80mm) are better suited to higher horsepower builds that can support additional airflow.

Are TNT3R turbos a direct replacement for a BorgWarner S300?

For a T4 S300, yes. TNT3R turbos use the standard T4 bolt pattern, the 4.25" marmon turbine discharge and the 50mm (1.97") mid-frame oil drain bolt centre. Replacing a T3 S300 requires a new T4 manifold.

Are TNT3R turbos built in Canada?

Yes. Every TNT3R turbo is designed, machined, assembled, and balanced in Canada by Black Sheep Industries.

Power ratings are quoted in crank horsepower (HP). Figures previously published in wheel horsepower (WHP) have been restated using our in-house tested conversion — the hardware and its capability are unchanged.

The TNT3R Series turbochargers are engineered to take your engine’s performance to extraordinary heights. Designed for big-power applications, these turbochargers cater to 4- and 6-cylinder engines, as well as twin-turbo setups for 8-cylinder configurations. Whether you’re building a high-performance street car, a competition-grade drag car, or a diesel powerhouse, the TNT3R Series has the capability and versatility to meet your needs.

These turbochargers are particularly popular with engines such as the K20, K24, RB20, RB25, RB26, 1JZ, 2JZ, Barra, and Vortec 4200, consistently delivering incredible power and reliability. Their advanced engineering ensures optimal performance, making them the go-to choice for enthusiasts and professionals alike.

Beyond their popularity with gasoline engines, the TNT3R Series is also highly sought after by diesel truck owners. These turbochargers have been extensively used on the 5.9L Cummins and are a favorite among Duramax and Powerstroke diesel enthusiasts as well. Whether you’re looking to improve towing capabilities, dominate off-road trails, or crush the competition on the track, the TNT3R Series offers the performance and durability needed for diesel applications.

Capable of producing up to 600 horsepower as a single turbo, the TNT3X Series truly shines in twin-turbo setups, where it can achieve an astonishing 2,000 horsepower. With such immense power potential, these turbos are perfect for anyone aiming to push their engine to the limits. The TNT3X Series delivers explosive power, exceptional throttle response, and consistent boost, ensuring you get the most out of your engine at every turn.

Upgrading to the TNT3X Series turbochargers unlocks your engine’s true potential, transforming it into a high-performance beast. Designed to provide maximum power and efficiency, these turbos will leave your competition in the dust. Whether you’re upgrading a high-revving gasoline engine or a torque-heavy diesel powerhouse, the TNT3X Series offers unparalleled versatility and performance.

Don’t wait to experience the ultimate in engine performance. Shop the TNT3X Series today and take your vehicle to the next level. From street to strip and beyond, these turbochargers deliver the power and reliability you demand. Unleash the beast within and discover why the TNT3X Series is the preferred choice for Cummins, Duramax, Powerstroke, and performance enthusiasts everywhere.
