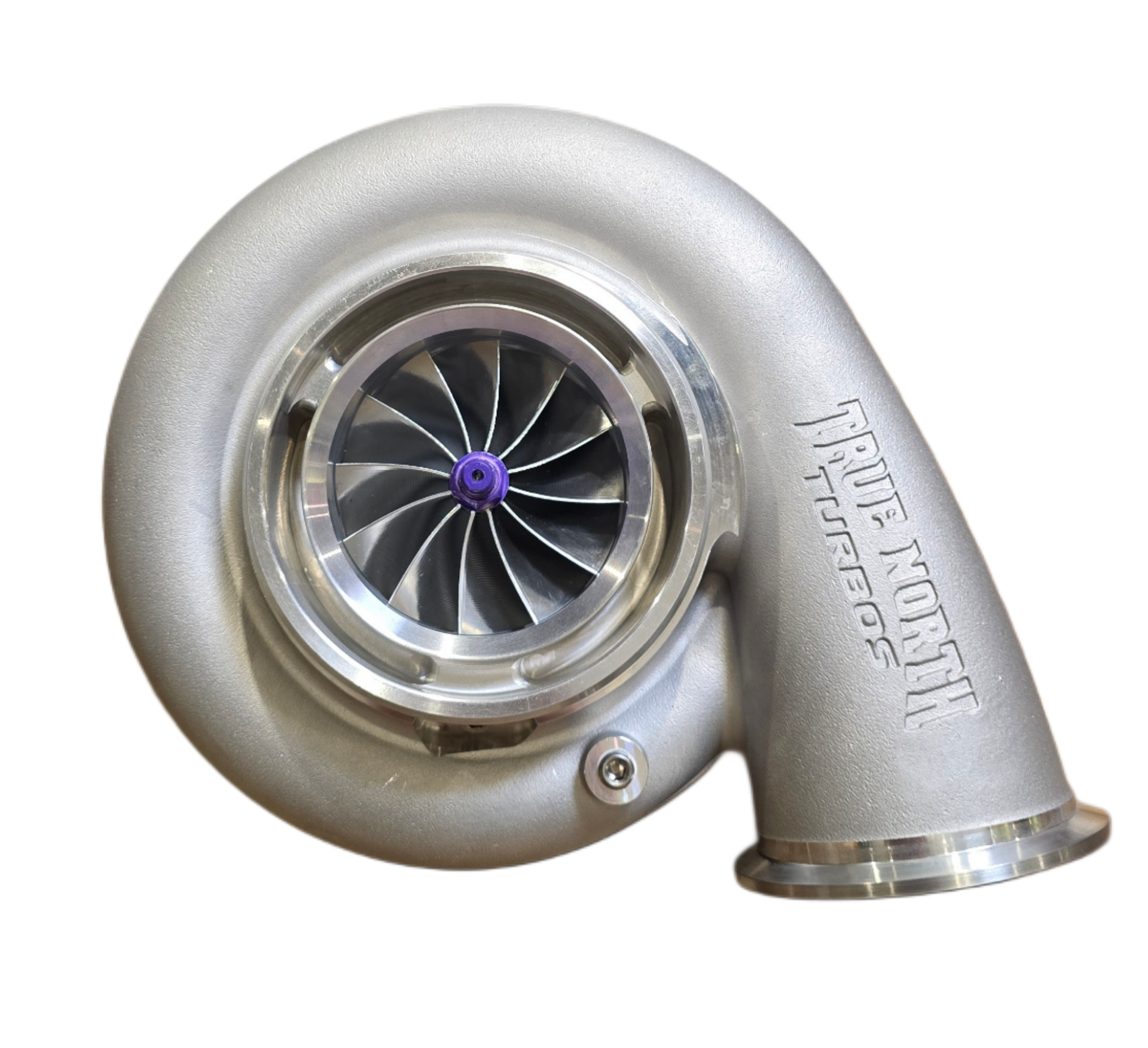

The NEW TNT485 85mm T6 journal bearing turbocharger has been redesigned around our all-new 85mm 12-blade billet compressor wheel, increasing its capability to support up to 1,520+ horsepower while delivering a broader, more usable powerband than our previous 7+7 design.

The new 12-blade compressor wheel was engineered to provide excellent response, strong mid-range performance, and impressive top-end airflow. Its wider operating range makes the TNT485 an outstanding choice for everything from powerful street-driven hot rods and LS or big-block swaps to import six-cylinder builds and high-performance diesel applications — anywhere that demands fast spool, excellent drivability, and serious horsepower.

The TNT485 is available with either our proven 96x88 or 103x92 turbine wheel. Our latest 96x88 turbine wheel is the result of years of development aimed at reducing the backpressure commonly associated with conventional 96x88 turbine designs when pushed to their limits.

The result is a turbocharger that accelerates the rotating assembly efficiently, delivers exceptional power throughout the RPM range, and continues pulling hard at high engine speeds. Whether you're building a high-horsepower street or race car or a competitive diesel truck, the TNT485 is designed to deliver outstanding performance without compromise.

Key Specifications

• All-new 85mm 12-blade billet compressor wheel
• Journal bearing center section
• 96x88 or 103x92 turbine wheel options
• T6 turbine housing with multiple A/R options
• Supports up to 1,520+ horsepower
• Broad powerband with excellent drivability
• Equally at home on gasoline and diesel applications
• Built to order

Replaces / Cross-Reference

The TNT485 is a direct bolt-on replacement for S483 and S485 turbochargers and other 85mm S400-frame units. Built on the same 400 frame, it uses the mounting hardware you already have:

• Turbine inlet: T6 — fits your existing T6 manifold
• Turbine discharge: 5.75" (146mm) marmon — same flange and 99502-0588 clamp
• Compressor discharge: V-band, sized to your charge pipe
• Oil drain: 50.8mm (2.00") bolt centre, 12AN port — same drain

Our 12-blade compressor and 96x88 / 103x92 turbine wheels are our own designs. Fitment is equivalent to the unit you are replacing; airflow character and powerband will differ, generally in your favour.

Full model mapping: S400 replacement cross-reference. Housing selection: S400 turbine housing and A/R guide.

Frequently Asked Questions

Is the TNT485 a direct replacement for an S485?

Yes. The TNT485 is built on the 400 frame, so it is a direct bolt-on replacement for S483 and S485 turbochargers. Your T6 manifold, 5.75" marmon downpipe flange, clamp, compressor discharge and 12AN oil drain all carry over.

What is the TNT485 rated for?

The TNT485 is capable of supporting up to 1,520+ horsepower, depending on engine combination, fuel type, boost level, and supporting modifications.

Is the TNT485 for gas or diesel?

Both. The 12-blade compressor was designed for a wide operating range, which makes it equally suited to street-driven hot rods, V8 swaps and import six-cylinder builds as it is to high-performance diesel trucks.

What's new with the compressor wheel?

The TNT485 now features our all-new 85mm 12-blade billet compressor wheel. Replacing the previous 7+7 design, it was engineered to produce a wider, more usable power curve while maintaining the airflow required for four-digit horsepower.

Power ratings on this page are quoted in crank horsepower (HP). Figures previously published in wheel horsepower (WHP) have been restated using our in-house tested conversion — the hardware and its capability are unchanged.
