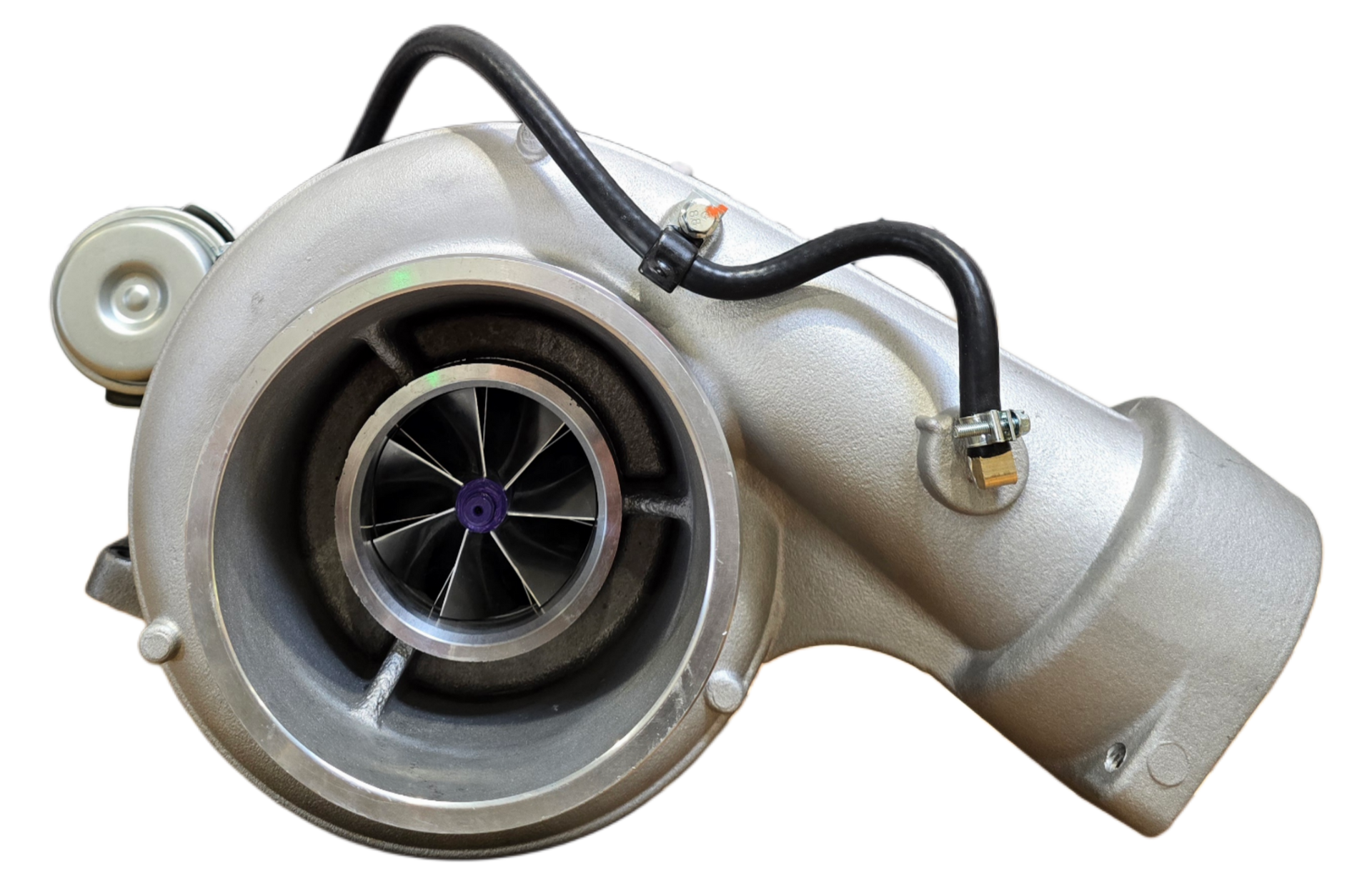

True North Turbos S410G CAT 3046E 575 HP Drop-In Turbocharger
True North Turbos S410G
CAT 3046E 575 HP Drop-In Turbocharger
A purpose-built S410G drop-in replacement engineered for Caterpillar 3046E applications up to 575 HP.
The new True North Turbos S410G brings the performance, engineering, and quality standards of our TNT 400-frame lineup to the Caterpillar 3046E platform. Designed as a direct replacement for the BorgWarner 177148, the S410G provides a straightforward drop-in solution for customers looking to replace a worn factory turbo or increase the airflow capability of their 3046E without completely re-engineering the installation.

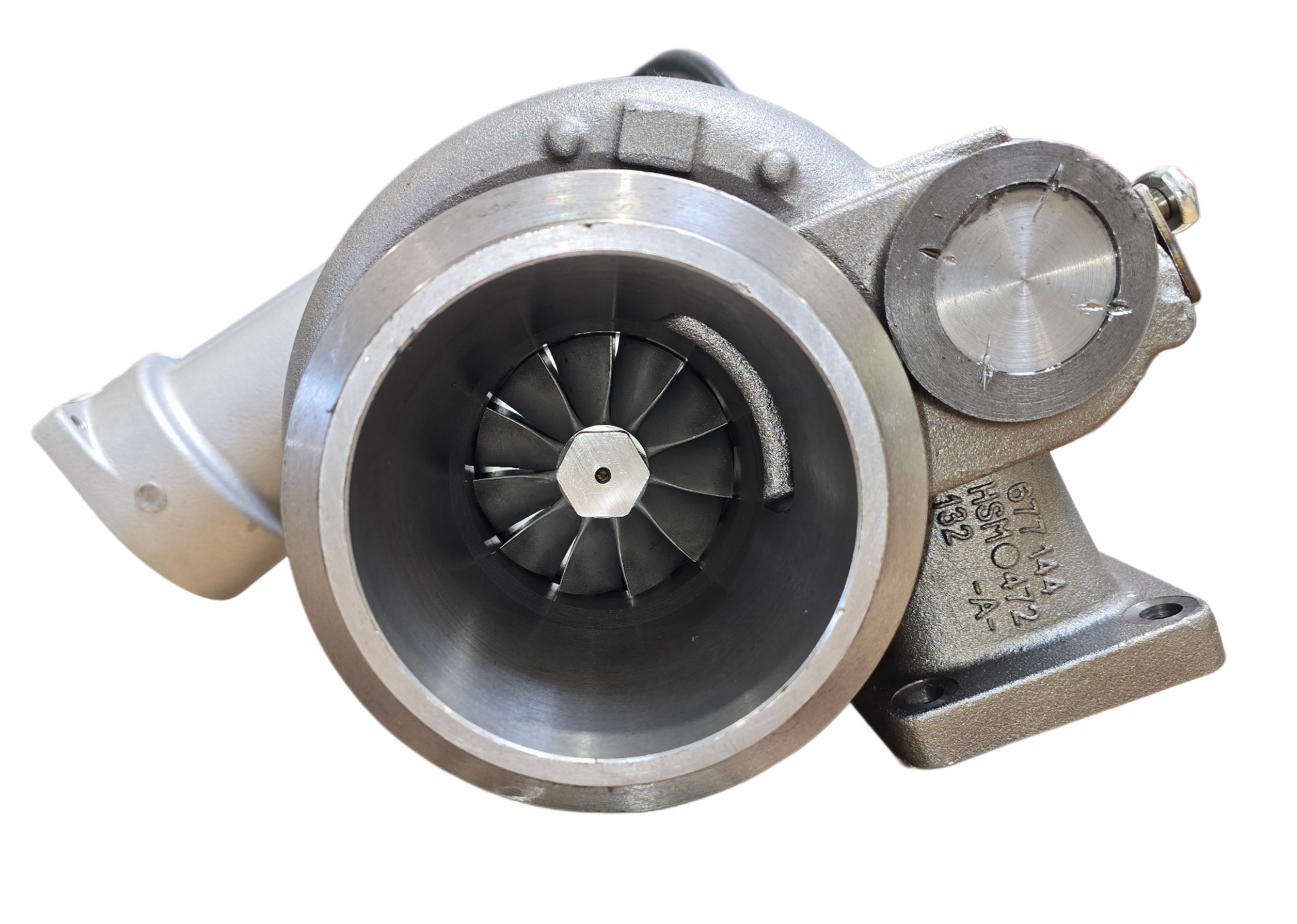

At the heart of the S410G is a 76 mm inducer / 108 mm exducer compressor wheel, matched with a 91.44 mm inducer / 81.74 mm exducer turbine wheel. This combination is engineered to provide the airflow required for applications targeting up to 575 HP, while maintaining the fitment characteristics required for a true drop-in replacement.
As with the rest of the True North Turbos lineup, the S410G is designed around performance, reliability, and precision. Every True North Turbos turbocharger is designed, machined, assembled, and balanced in Canada by Black Sheep Industries, with quality-control processes throughout production to ensure the finished turbo meets our standards before it leaves our facility.
The S410G is built for customers who want more than an off-the-shelf replacement. It's a True North Turbos solution engineered for real-world heavy-duty performance, backed by a Canadian company that understands the applications these turbos are built for.
S410G Specifications
| Specification | S410G |
|---|---|
| Brand | True North Turbos |
| Model | S410G |
| Application | Caterpillar 3046E |
| Power Rating | Up to 575 HP |
| Compressor Inducer | 76 mm |
| Compressor Exducer | 108 mm |
| Turbine Inducer | 91.44 mm |
| Turbine Exducer | 81.74 mm |
| Primary Reference | BorgWarner 177148 |
| Fitment | Drop-In / Direct Replacement |
Direct Replacement & Cross-Reference
The True North Turbos S410G is designed to replace a wide range of Caterpillar, BorgWarner, Garrett and aftermarket turbocharger part numbers.
BorgWarner:
177148, 177148R, 170354, 169227, 477148, 1491-988-0017
Caterpillar:
167-9271, 166-6752, 124-3035, 0R-7201, 0R-7152, 0R-6989, 141-8937, 0R-7299, 137-4832, 136-6390, 124-3032, 0R-7310, 141-8939, 146-4328, 0R-7223, 196-5951, 0R-7923, 0R-6986, 0R-7203, 222-1133, 10R-1065, 10R-2962, 127-4260, 261-6857, 115-7081, 160-6201, 124-3033, 141-8940, 0R-6938 and additional OEM and remanufactured part numbers.
Garrett:
466445 series, 471142 series, 704604 series and 732915 series.
Other Cross-References:
T1241-01, 11-C-7182, M-0R7923, M-1679271, M-1965951 and related interchange numbers.
Built in Canada. Built for the Job.
True North Turbos was created to deliver high-quality turbochargers without compromising on engineering, manufacturing, or support. The S410G carries that same philosophy into the Caterpillar market — precision-built, properly balanced, performance-focused, and supported from right here in Canada.
Whether you're replacing a failed factory unit or building a 575 HP 3046E, the True North Turbos S410G is engineered to get the job done.
True North Turbos — Built in Canada. Built to Perform.
Cross-reference numbers are provided for identification and interchange purposes only. Always verify turbocharger configuration and application before ordering. BorgWarner, Caterpillar and Garrett are trademarks of their respective owners. True North Turbos and Black Sheep Industries are not affiliated with or endorsed by these manufacturers.
