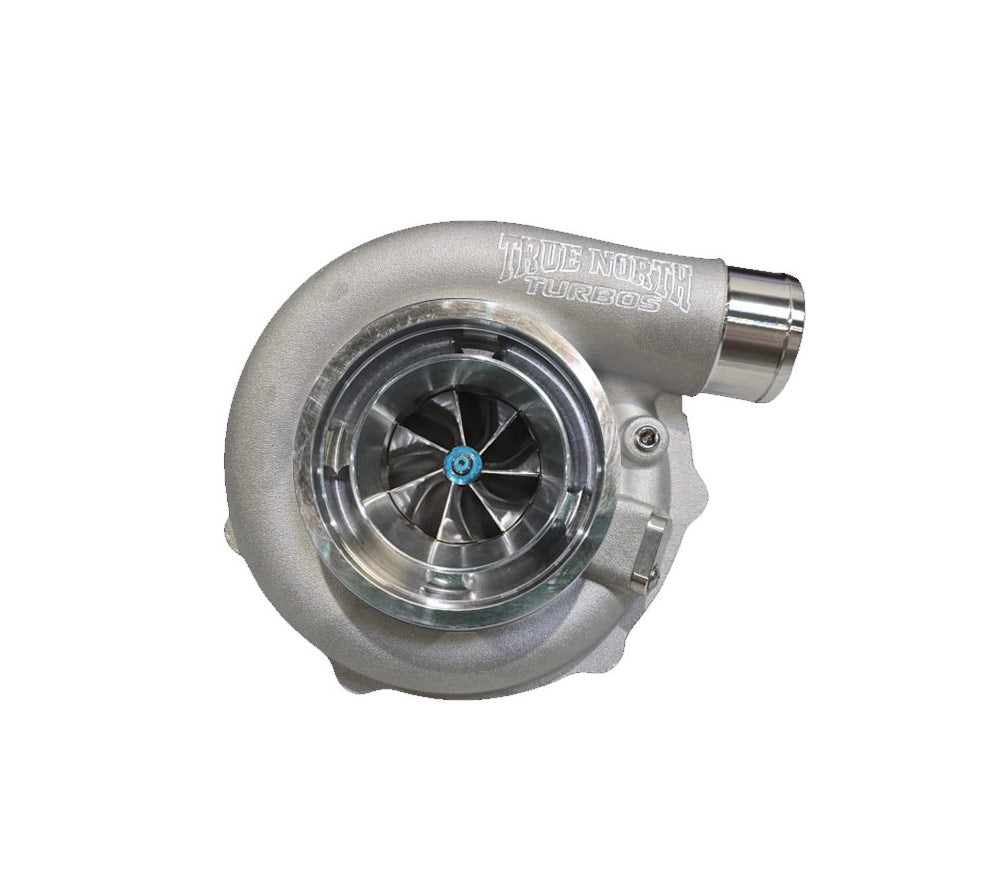

TNTSF68 Ball Bearing Drop-In Turbo — G30/G35 Fitment

When you're ready to leave stock power far behind, the TNTSF68 from True North Turbos is the flow king of the TNTSF lineup — a direct bolt-on replacement for the Garrett® G30 and G35 series that goes head-to-head with the G35-1050. Its 68mm (2.68") compressor rides the full 68x62mm G35-size turbine wheel and is rated to 1,110 crank horsepower, above the G35-1050's 1,050 HP rating — at hundreds of dollars less. Engineered and backed by Black Sheep Industries right here in Canada.

Features & Benefits

True Drop-In Fitment

Designed as a direct bolt-on replacement within the Garrett G30/G35 footprint, the TNTSF68 slots into your existing turbo location without custom fabrication. The mounting points, oil feed/drain connections, and housing options match what G-Series builders already plumb for — choose a T3 0.83 A/R turbine housing or dual V-band in 0.61, 0.83, 1.01, or 1.21 A/R.

Ball Bearing Centre Cartridge

The heart of the TNTSF68 is its precision ball bearing centre cartridge — a meaningful step up from journal bearing designs. You get quicker boost response off low RPM, reduced spool time, and a centre section built to handle the demands of high-power, high-hour builds. Water-cooled and oil-lubricated.

Rated to 1,110 HP at the Crank

With the right supporting modifications, the TNTSF68 is rated to support up to 1,110 horsepower at the crank. That's G35-1050 territory and beyond, making it a genuinely capable foundation for a full-send single-turbo build or a monster twin-turbo V8 combination.

Built and Supported in Canada

Designed and manufactured by True North Turbos, a Black Sheep Industries brand, the TNTSF68 comes with Canadian warranty coverage and direct-from-brand support. Whether you're building in Vancouver or Miami, you're buying from a team that stands behind their product.

Push your G30/G35-based build to its potential — the TNTSF68 is the drop-in solution for builders who aren't done yet.

Key Specs

• 68mm (2.68") compressor inducer; 68x62mm G35-size turbine wheel
• Rated to 1,110 HP (crank)
• Fully ball bearing, water-cooled, oil-lubricated
• Direct bolt-on replacement for Garrett® G30/G35 fitment
• Turbine housing options: T3 0.83 A/R or dual V-band 0.61 / 0.83 / 1.01 / 1.21 A/R
• Designed, machined, assembled, and balanced in Canada by Black Sheep Industries

FAQ

Is the TNTSF68 a direct bolt-on replacement for the Garrett G30/G35?

Yes. The TNTSF68 is designed as a direct bolt-on replacement within the Garrett G30/G35 footprint, using matching mounting points and housing options without custom fabrication.

How does the TNTSF68 compare to the G35-1050?

Both run a 68mm compressor inducer over a 68x62mm turbine. The TNTSF68 is rated to 1,110 HP at the crank — above the G35-1050's 1,050 HP rating — at a significantly lower price.

What type of bearing system does the TNTSF68 use?

A precision ball bearing centre cartridge — water-cooled and oil-lubricated — offering quicker boost response off low RPM and reduced spool time compared with journal bearing designs.

How much power is the TNTSF68 rated to support?

With the right supporting modifications, up to 1,110 horsepower at the crank.

Is the TNTSF68 a Garrett turbo?

No. It's designed and manufactured by True North Turbos, a Black Sheep Industries brand, with Canadian warranty coverage and direct-from-brand support. "G30/G35 fitment" refers to compatibility only.

Power ratings on this page are quoted in crank horsepower (HP). Figures previously published in wheel horsepower (WHP) have been restated using our in-house tested conversion — the hardware and its capability are unchanged.

Not manufactured by, affiliated with, or endorsed by Garrett Motion Inc. "Garrett", "G30", and "G35" are referenced solely to identify fitment compatibility.
