The FKF 60"-80" Traction Bars are a fully bolt-on ladder bar kit for 2011-2019 Chevrolet and GMC 2500HD / 3500HD trucks with a 4" axle diameter. They use 2" .250" wall DOM steel tubing, 1/4" HRPO steel mounts and 1.25" heim joints rated to 76,000 lb — some of the highest strength components on the market.

No-questions-asked lifetime warranty. If you bend, crack or damage these bars or any fabricated component in this kit, we replace them.

This kit includes 4 brand new powder coated 3/4" U-bolts.

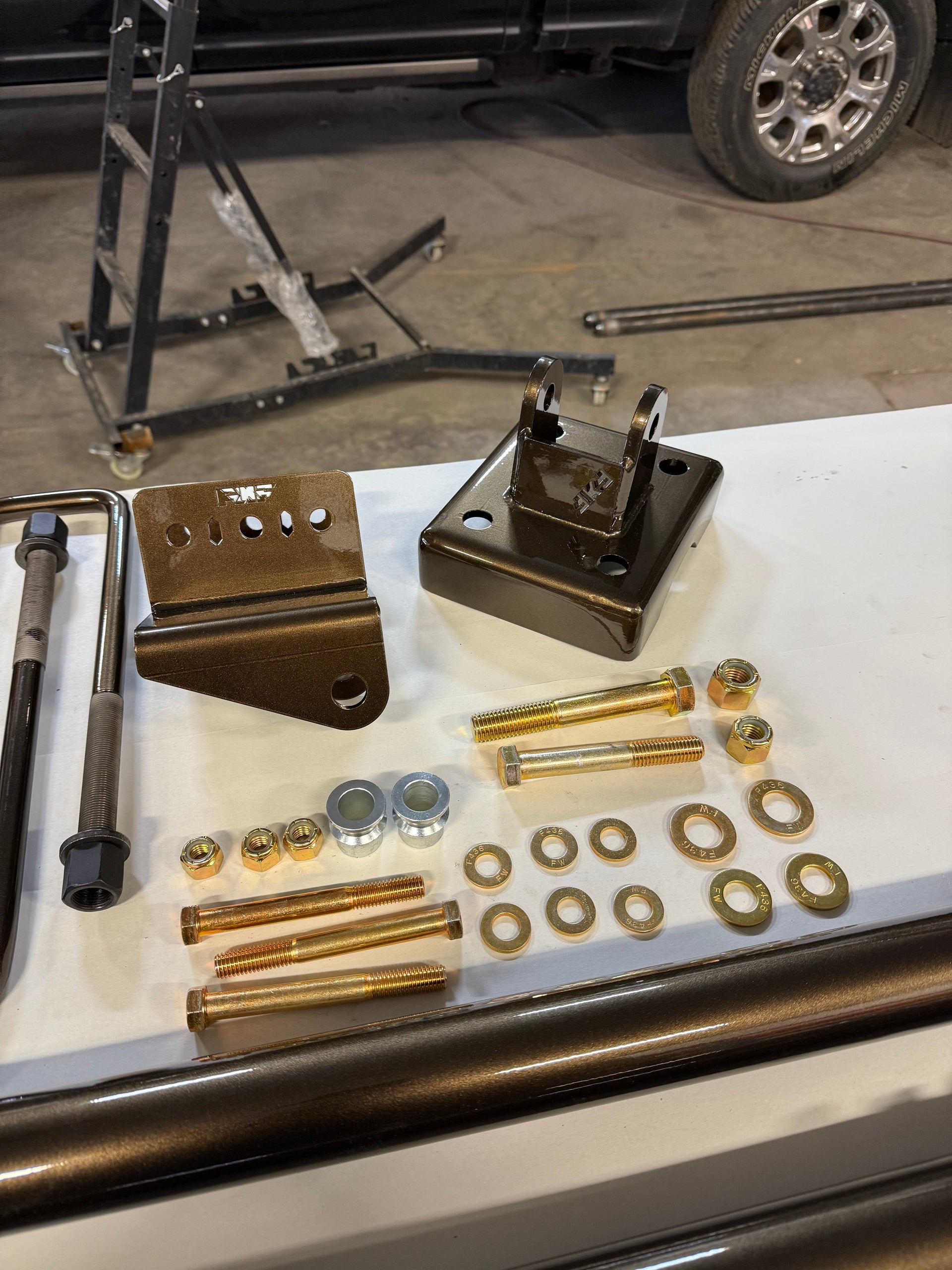

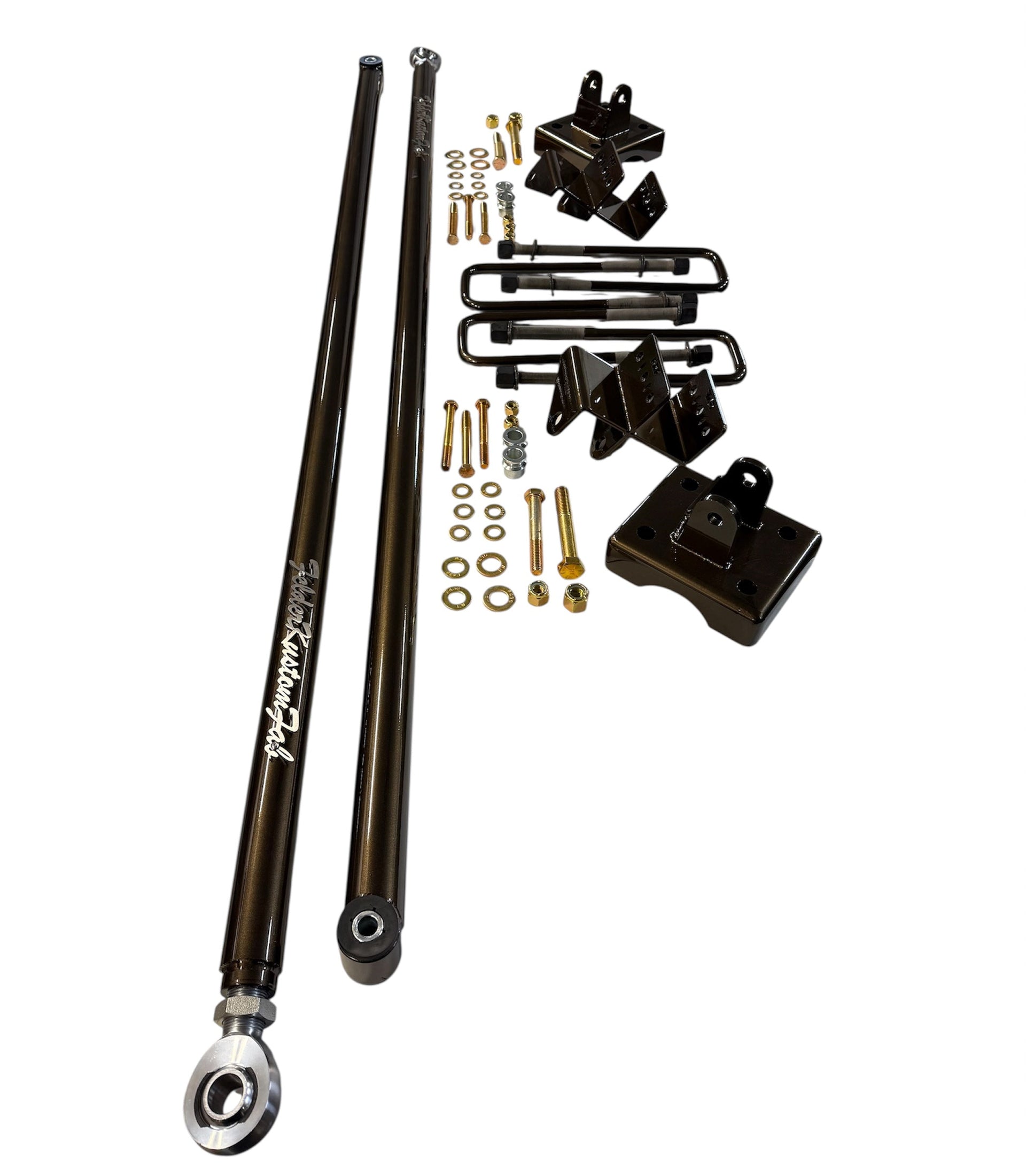

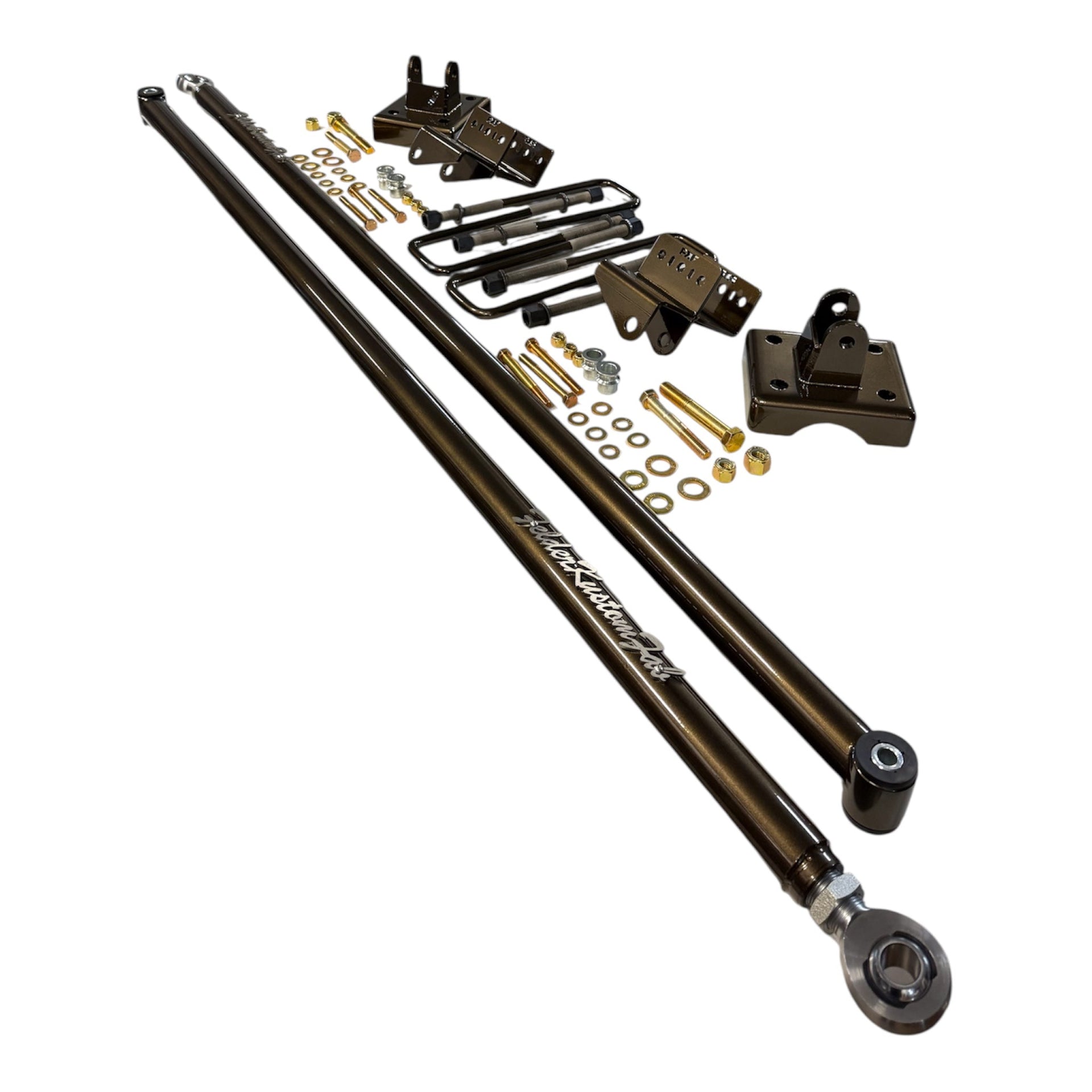

Included components

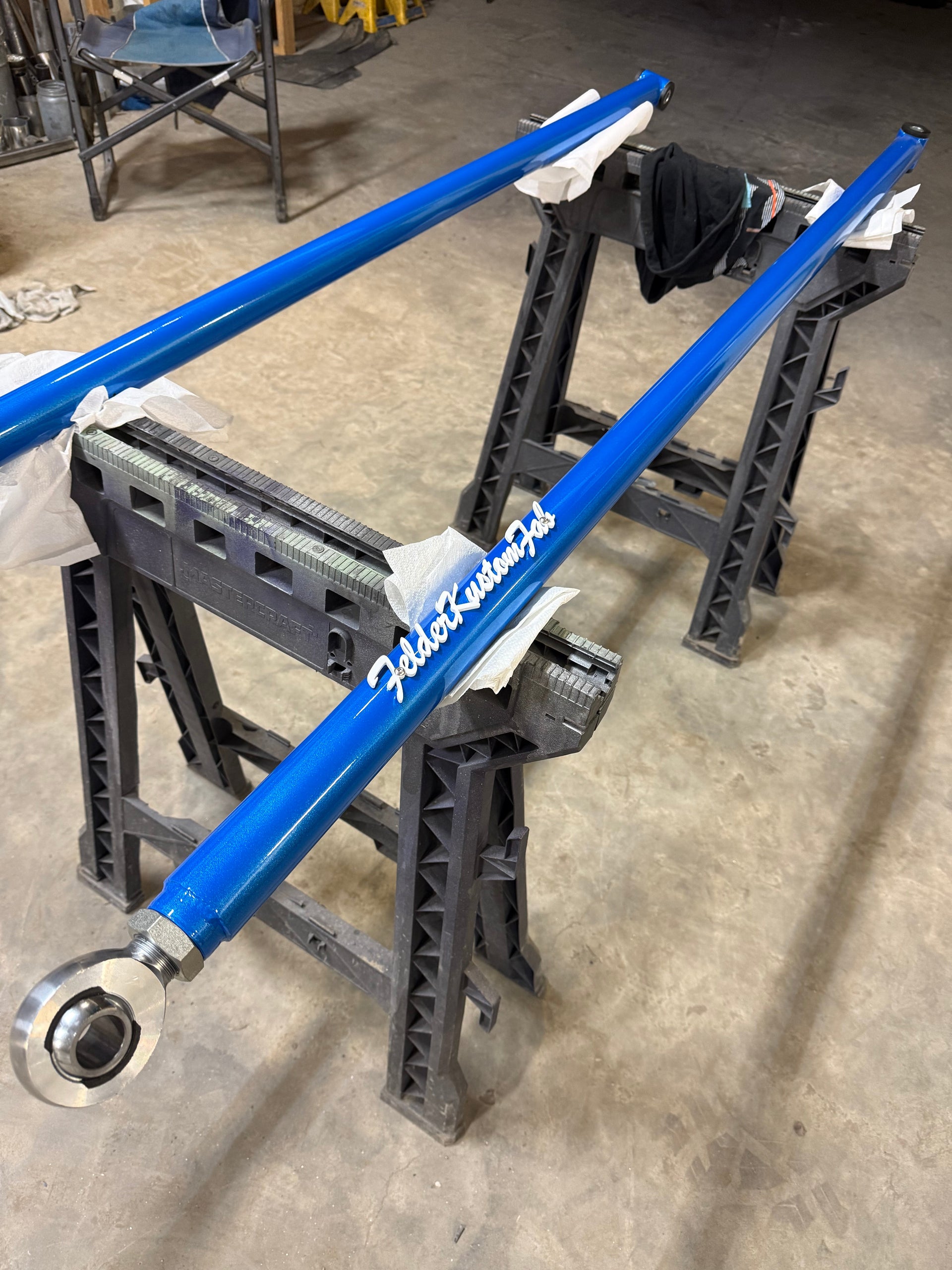

• 2x 2" .250" wall DOM tube traction bars
• 2x 2" .250" wall DOM tube with HD poly bushing and sleeve
• 2x 1.25" 12tpi right hand heim joints (76,000 lb load rating)
• 4x heim joint misalignment spacers
• 2x 1/4" steel rear bolt-on axle mounts
• 2x 1/4" steel front bolt-on frame brackets
• 2x Grade 8 5/8" x 4" bolts and 2x Grade 8 5/8" nuts
• 2x Grade 8 3/4" x 4" bolts and 2x Grade 8 3/4" nuts
• 10x Grade 8 1/2" x 1-1/4" bolts and 10x Grade 8 1/2" nuts
• 20x 1/2" washers, 4x 5/8" washers, 4x 3/4" washers
• 2x 3/16" FelderKustomFab badges and 4x stainless button head badge bolts

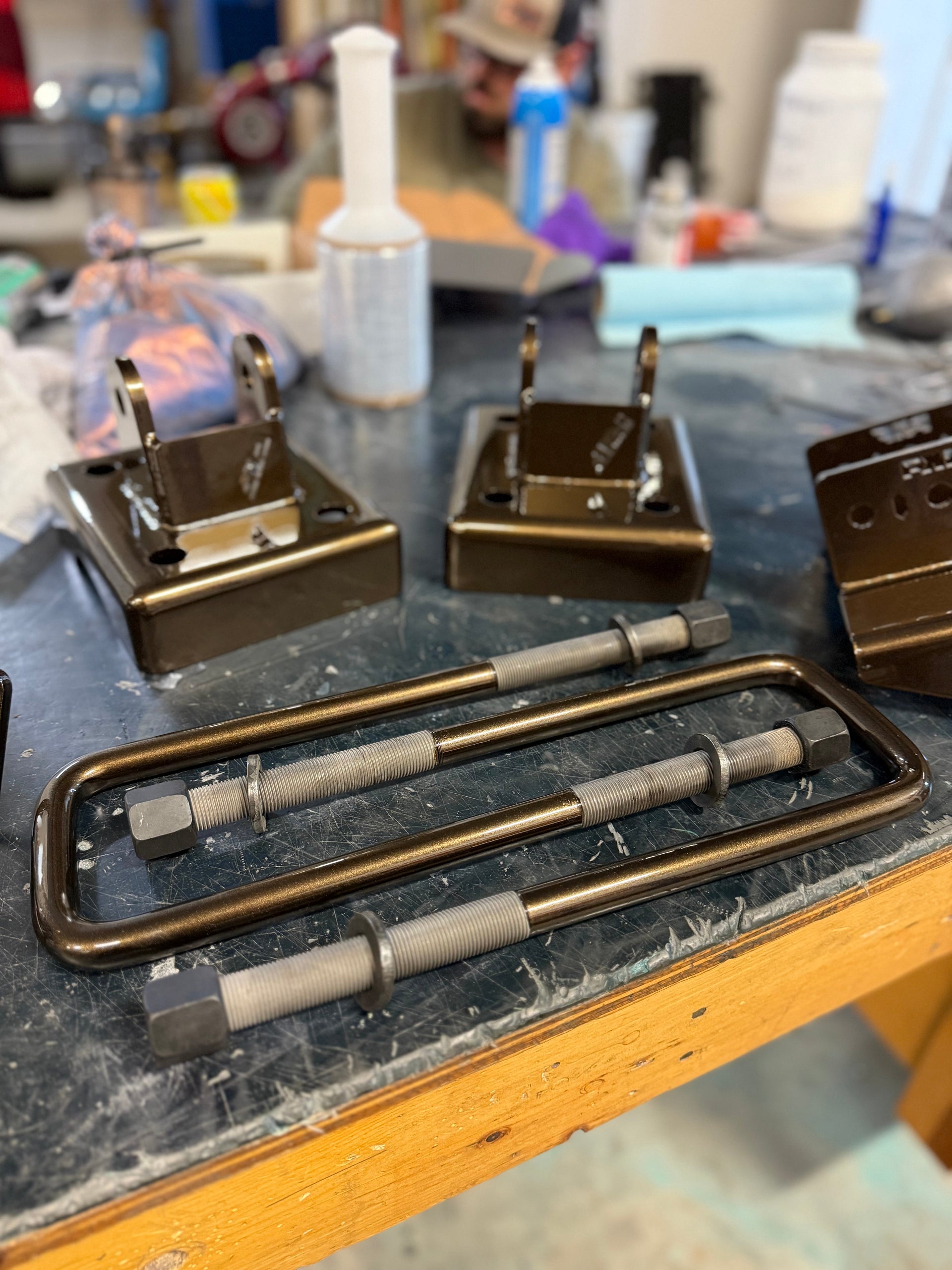

• 4x powder coated 3/4" U-bolts

Available in any length from 60" to 78".

Through-frame cradle mounts

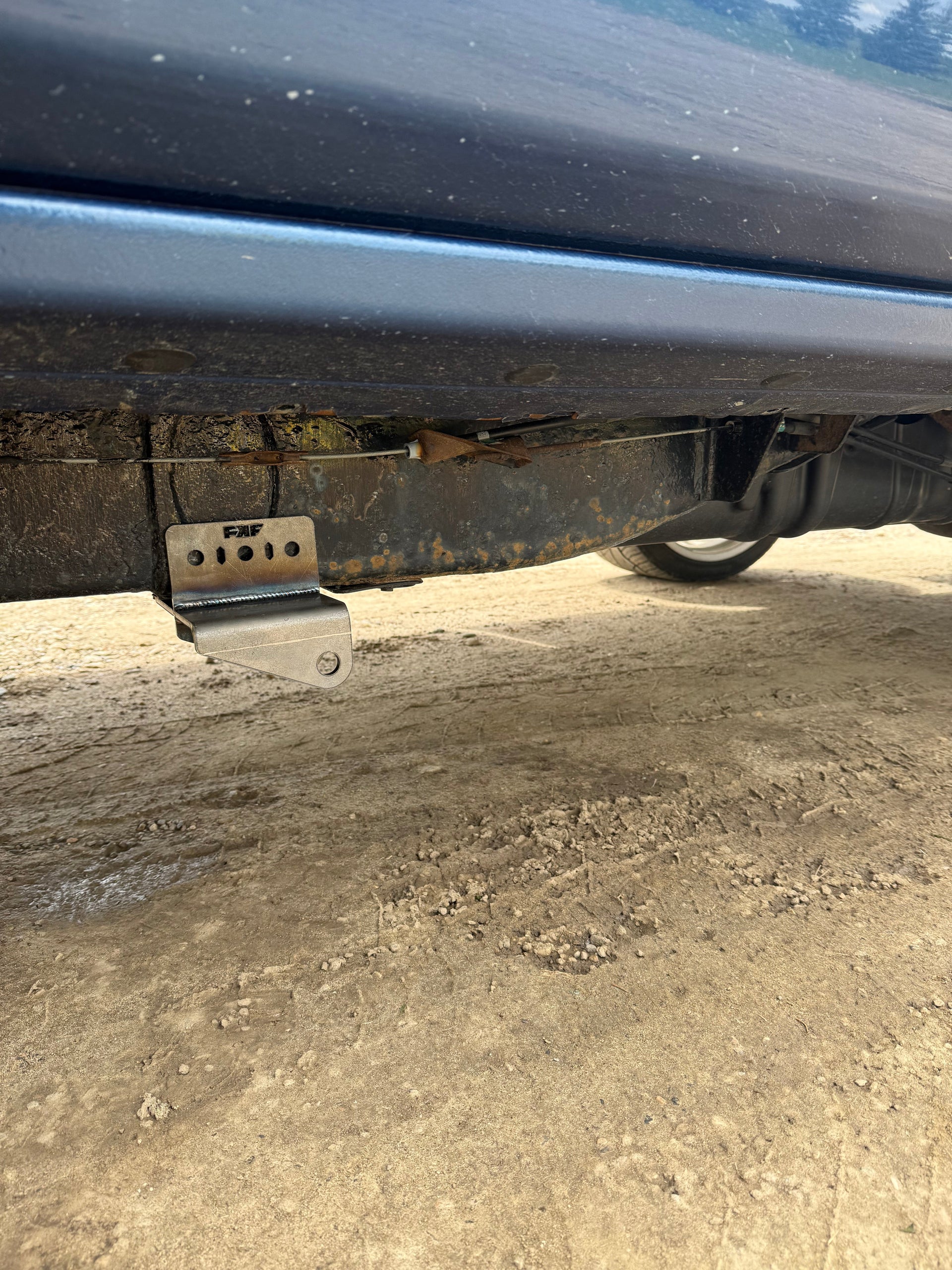

Important: these front traction bar mounts use a cradle style mount with 3 "through frame" bolts that pass through the thickest part of your boxed frame. This removes the need to drill large access holes in the backside of your frame to start a nut inside the frame rail, creating a much stronger mount and an easier installation.

The trade-off: these mounts need to land in a specific location on your frame for access to the bolts on the backside. They land on the thickest portion of the frame while still allowing access in front of the fuel tank to install the rear-most nut on the driver side.

How to measure for your traction bar length

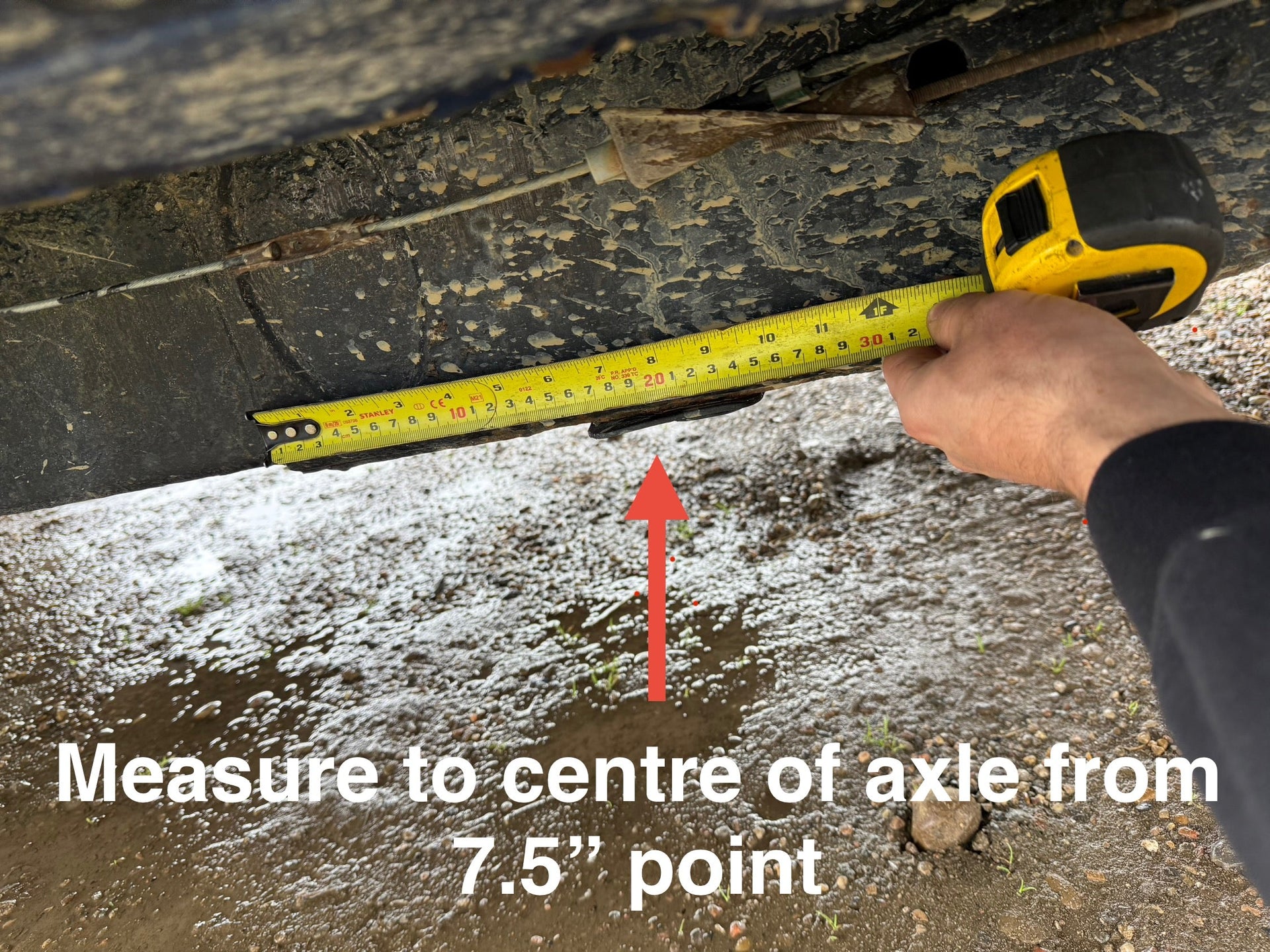

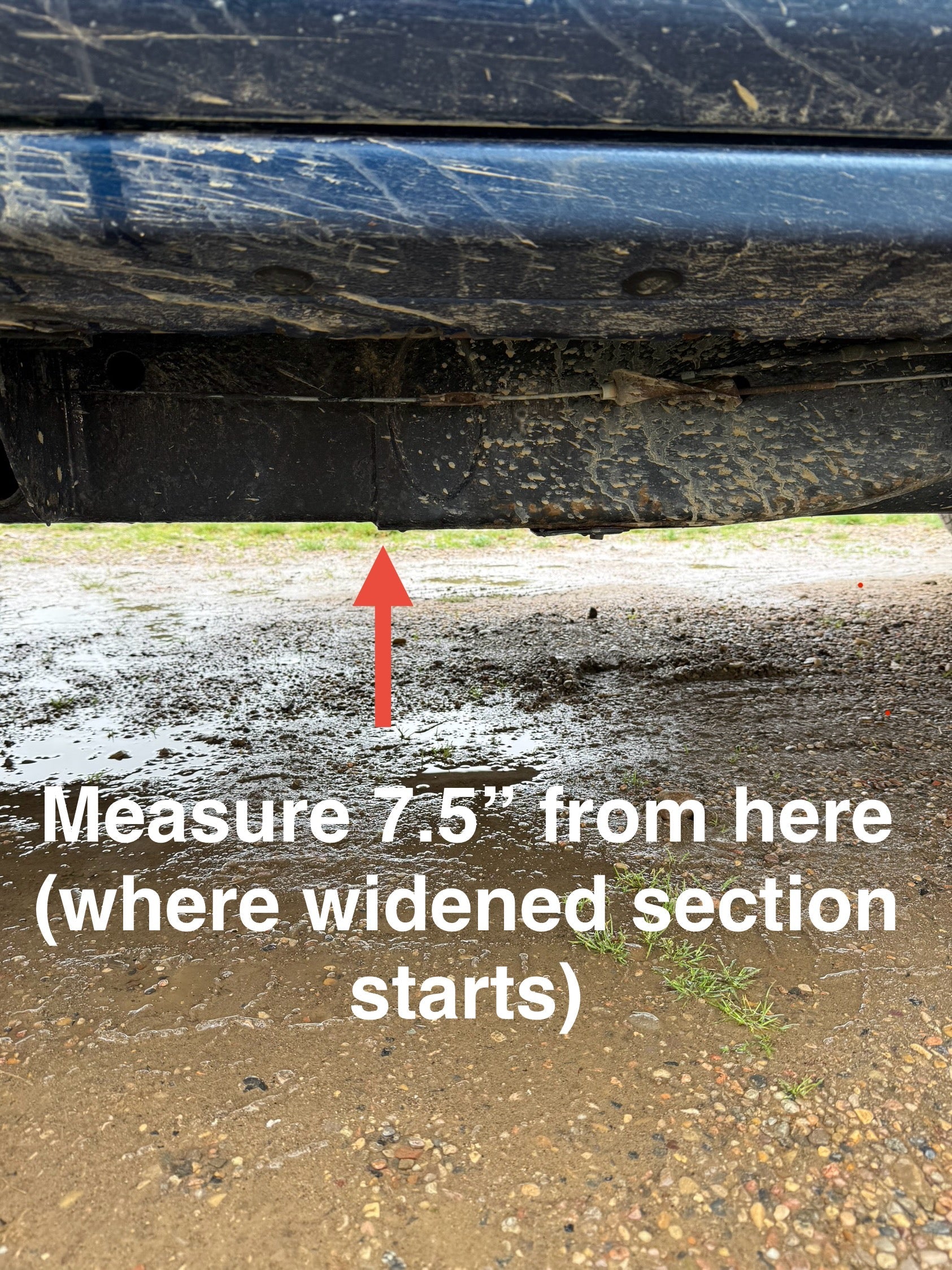

Locate the widened section on your driver side frame rail. Measure 7.5" from this widened section and make a mark. Measure from this mark to the centre of your axle — that gives you the correct traction bar length. Photos are attached to help with this process.

Close to stock height short box crew cabs will use 67.5" bars.

If you would prefer longer bars that mount forward of the widened section (75"+), let us know and we will send shims for the front mounts.

Fitment

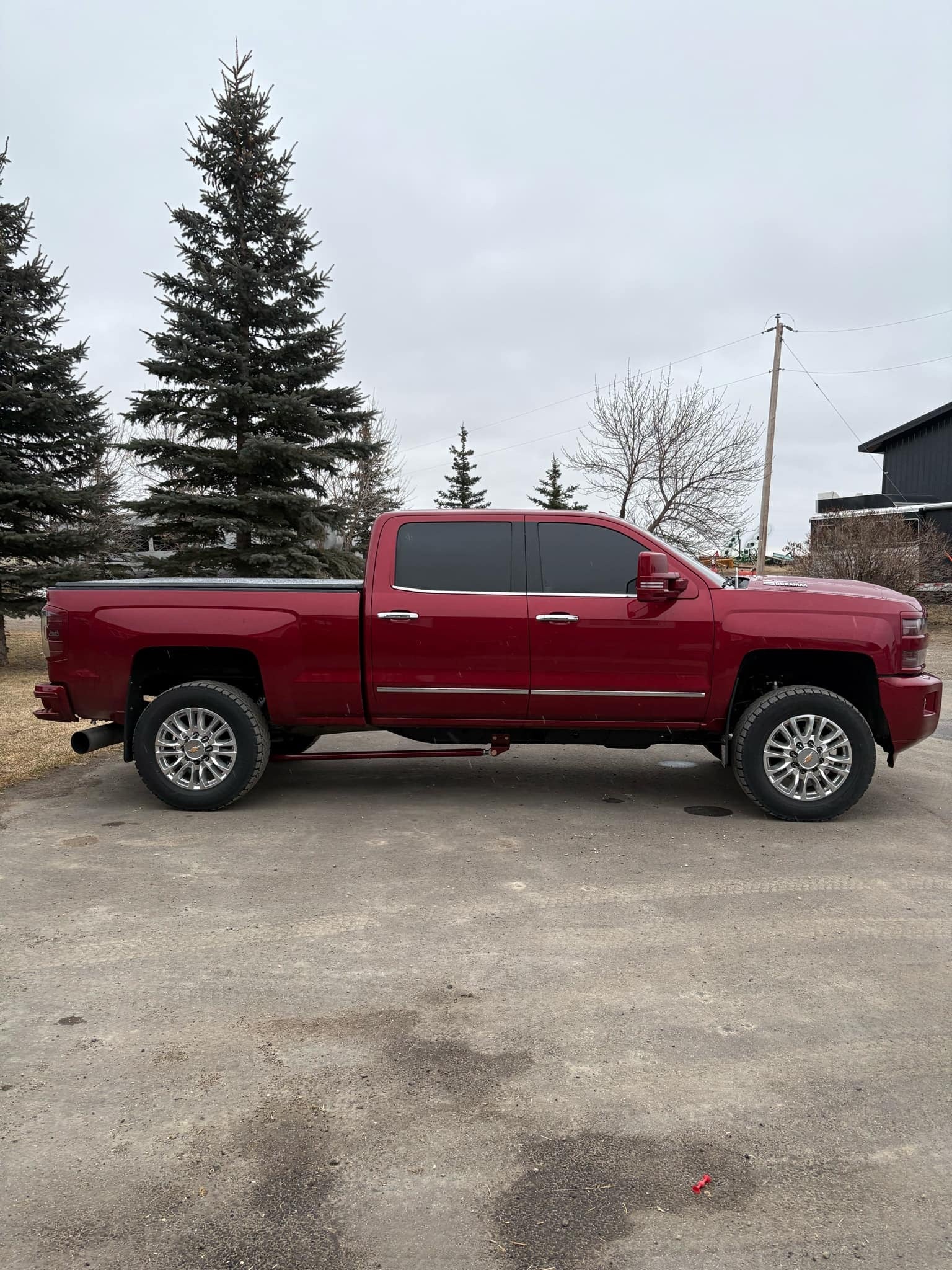

2011-2019 Chevrolet Silverado and GMC Sierra 2500HD / 3500HD with a 4" axle diameter.

Powder coat options

The FelderKustomFab badge comes in raw brushed stainless steel. If you would like it done in a custom colour, state it in the cart notes.

If a custom powder coat colour is desired for the bars or mounts, select “Custom Colour” and state the colour in the dropdown menus. If Raw is selected, these fields can be left empty.

Colour link — https://www.prismaticpowders.com/canada

Frequently asked questions

What is the lead time on these traction bars?

Please allow 2-3 weeks at the moment. These bars are built to order, not pulled from a shelf. Contact us before ordering if you need an exact date.

What length traction bars do I need?

Locate the widened section on your driver side frame rail, measure 7.5" forward from it and mark that spot, then measure from the mark to the centre of your axle. Close to stock height short box crew cabs typically use 67.5" bars.

Do I have to drill holes in the back of my frame?

No. The cradle style front mounts use three through-frame bolts that pass through the thickest part of the boxed frame, so you do not need to drill large access holes in the backside of the frame rail.

What is the warranty on FKF traction bars?

A no-questions-asked lifetime warranty. If you bend, crack or damage the bars or any fabricated component in the kit, we replace them.

Are U-bolts included?

Yes. Four brand new powder coated 3/4" U-bolts are included with this kit.
