Built to order — not a shelf part
Current build time: 7–14 business days
Every Felder Kustom Fabrication part is fabricated after your order is placed, so lead times run longer than off-the-shelf parts. Lead time varies with our current build queue — contact us before ordering if you need an exact date.

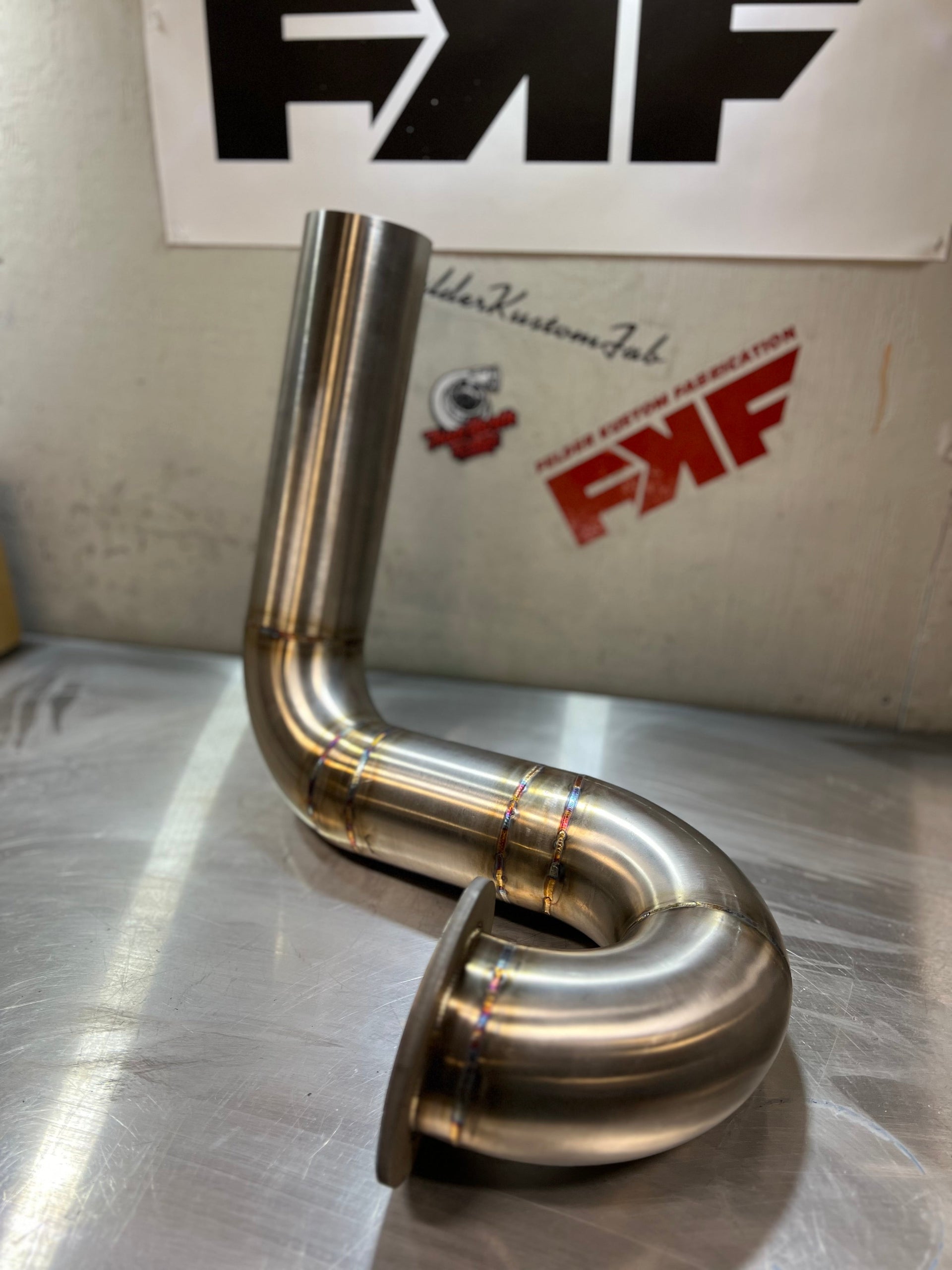

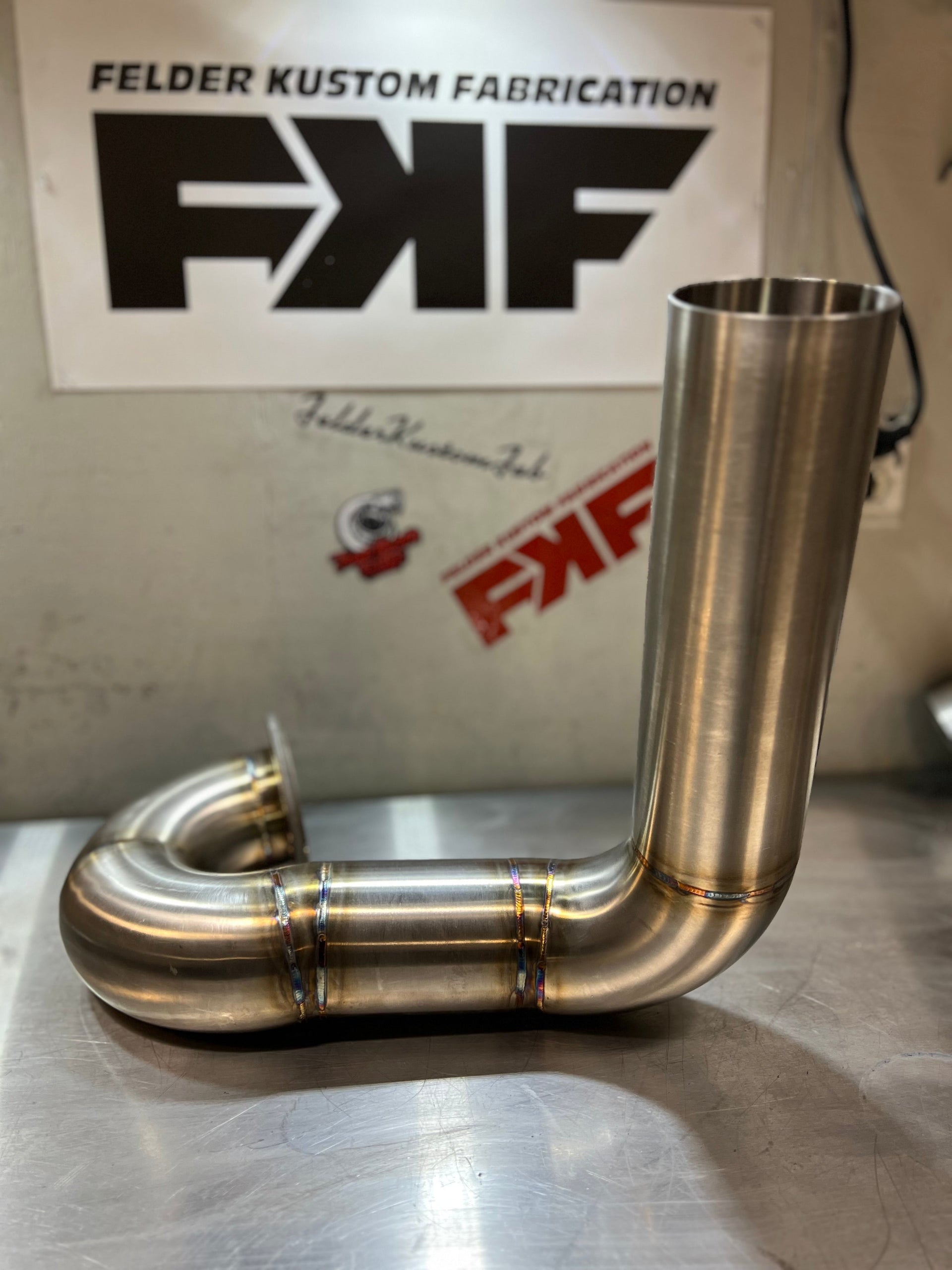

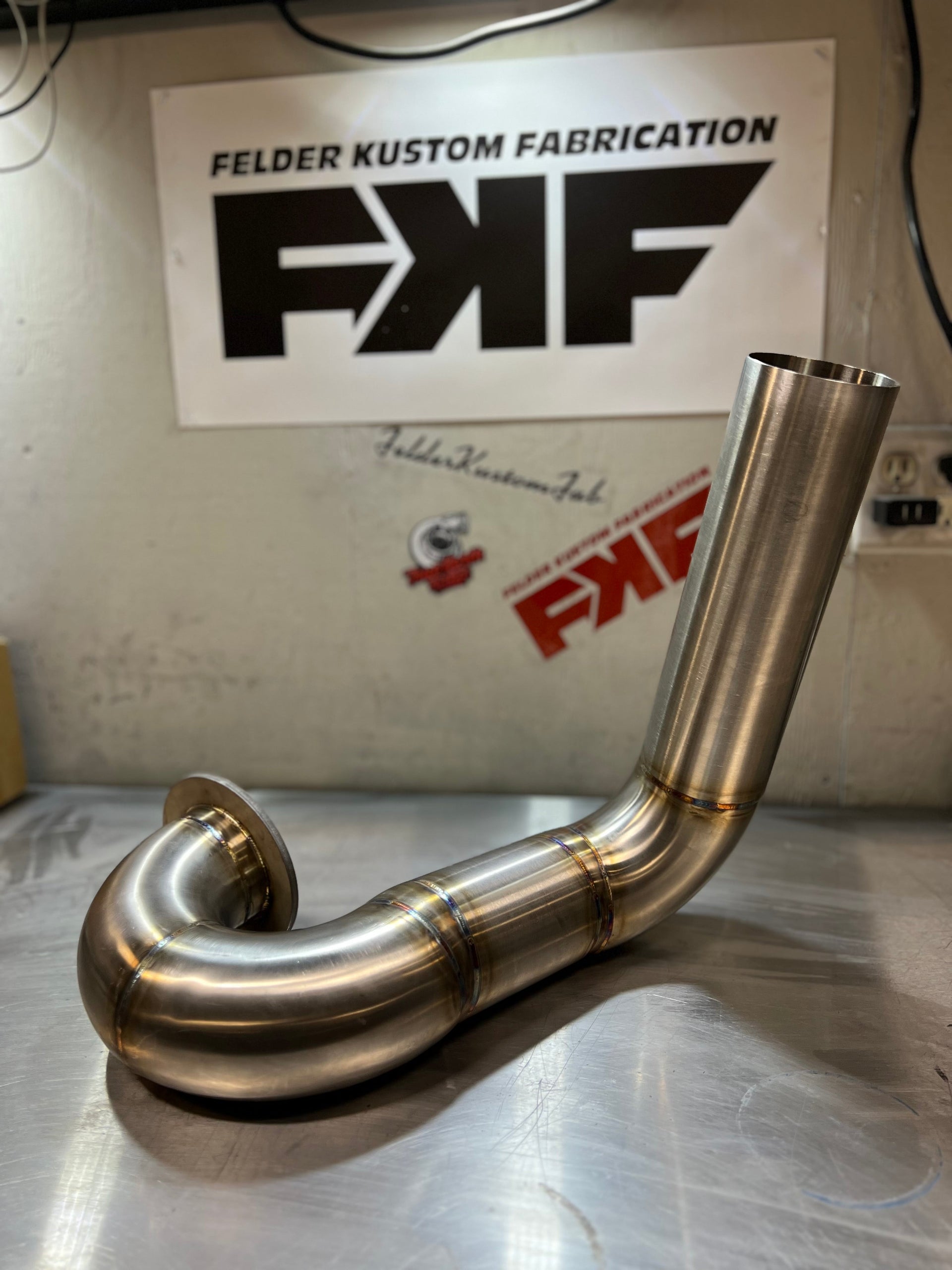

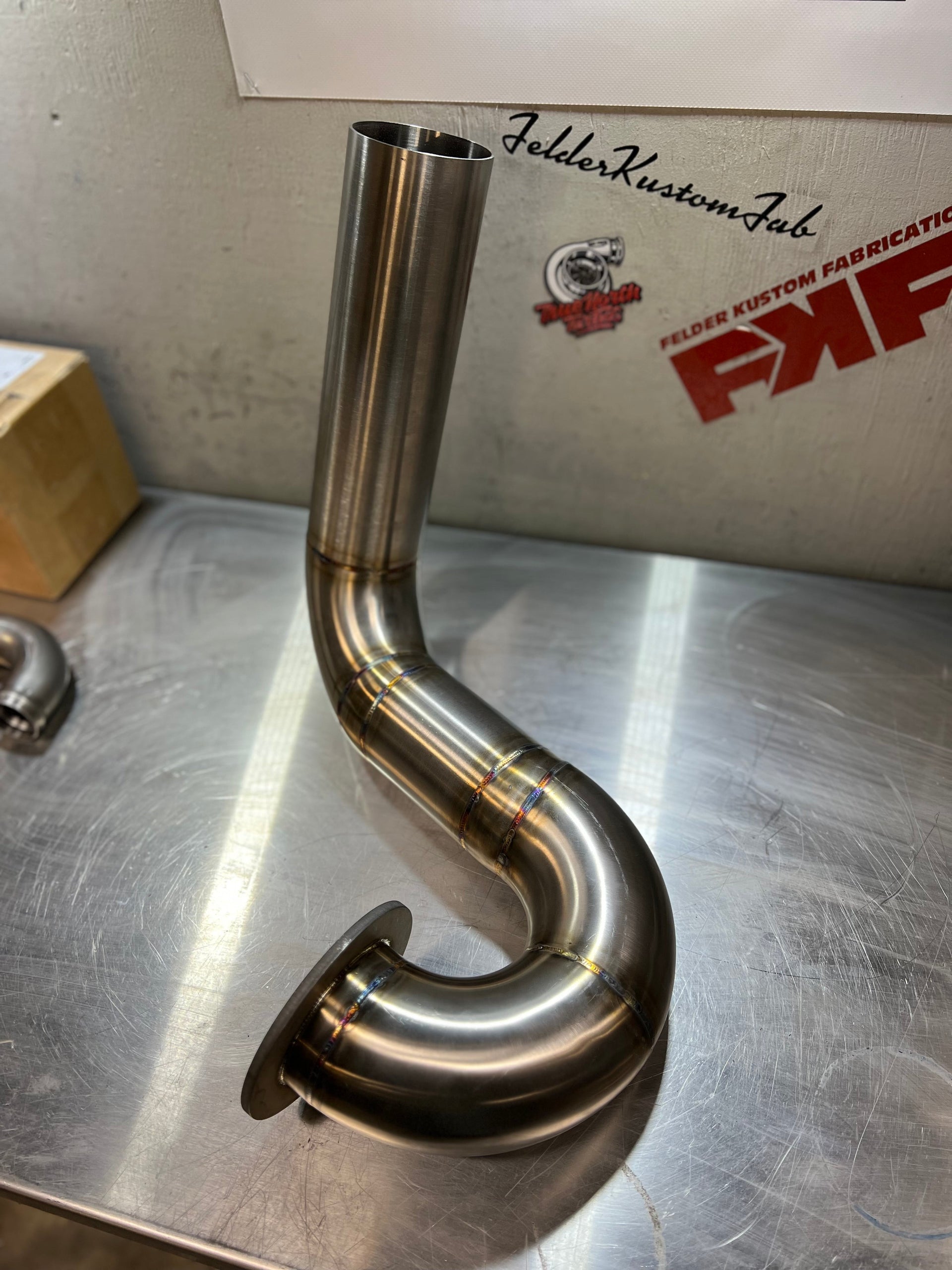

The FKF 2017-2025 L5P Duramax Hood Stack Kit is a hand-built 3.5" mandrel-bent 304 stainless hood stack for the 6.6L L5P. This is not a mass produced overseas pipe — every one is TIG welded and back purged in brushed 304 stainless for years of trouble-free use.
THIS IS NOT A DELETE OR DEFEAT PIPE. FOR OFFROAD OR RACE USE ONLY.
Features
- 3.5" 304 stainless steel mandrel bent tubing
- Laser cut stainless steel turbo flanges

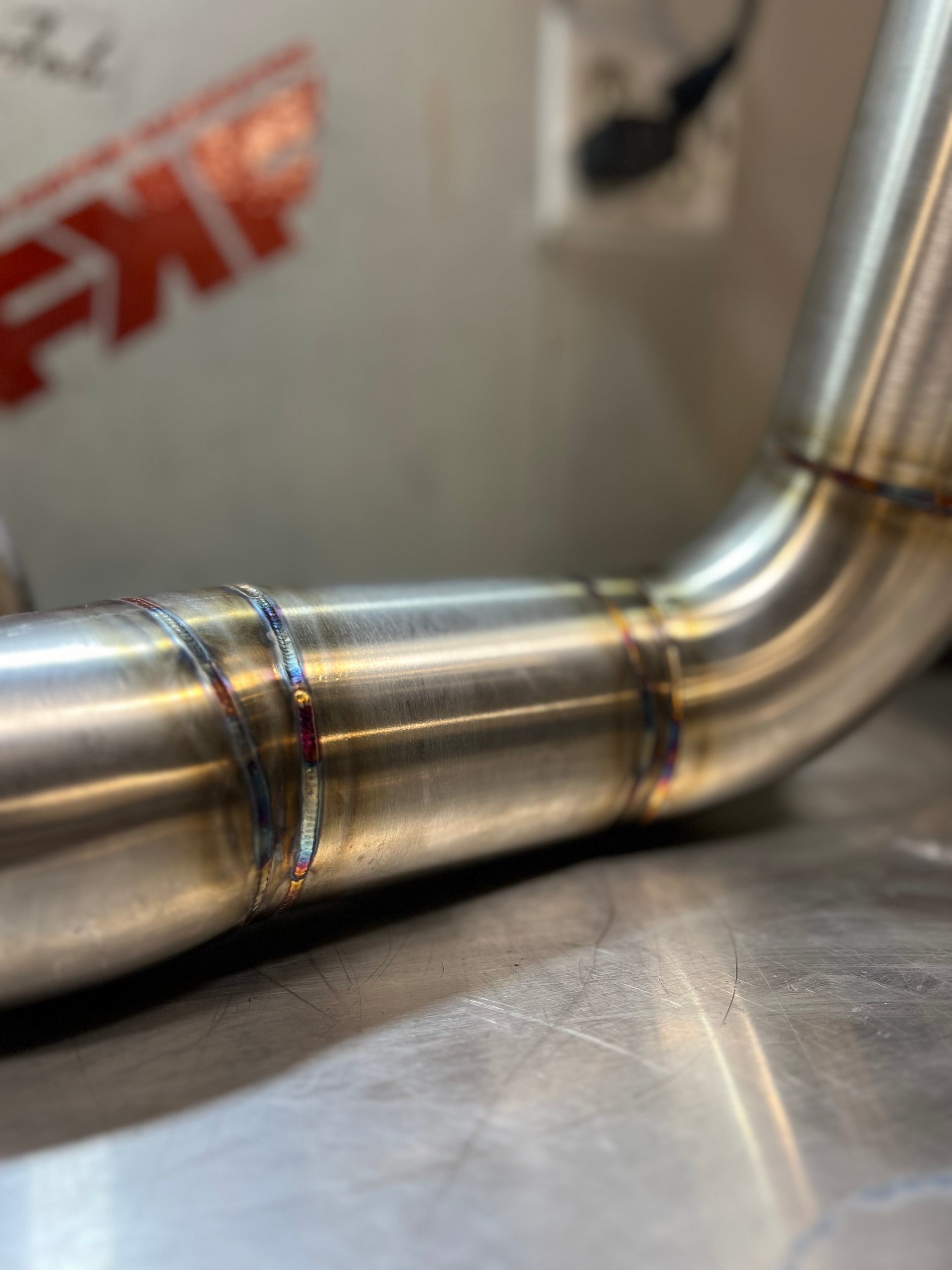

- TIG welded and back purged for aesthetic and strong welds

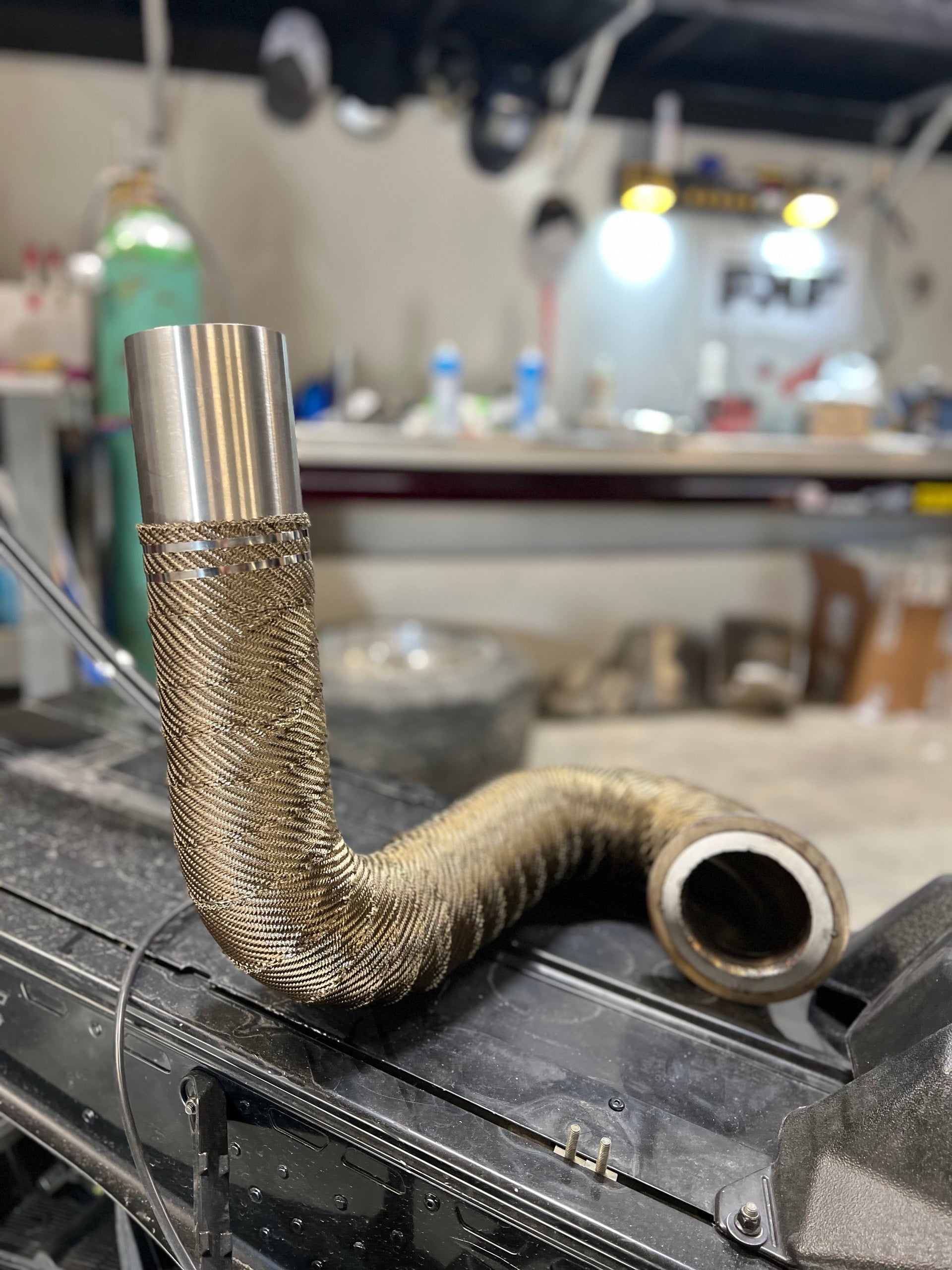

- Optional TI heat wrap
- Fully hand built every time
Stack placement and clearance

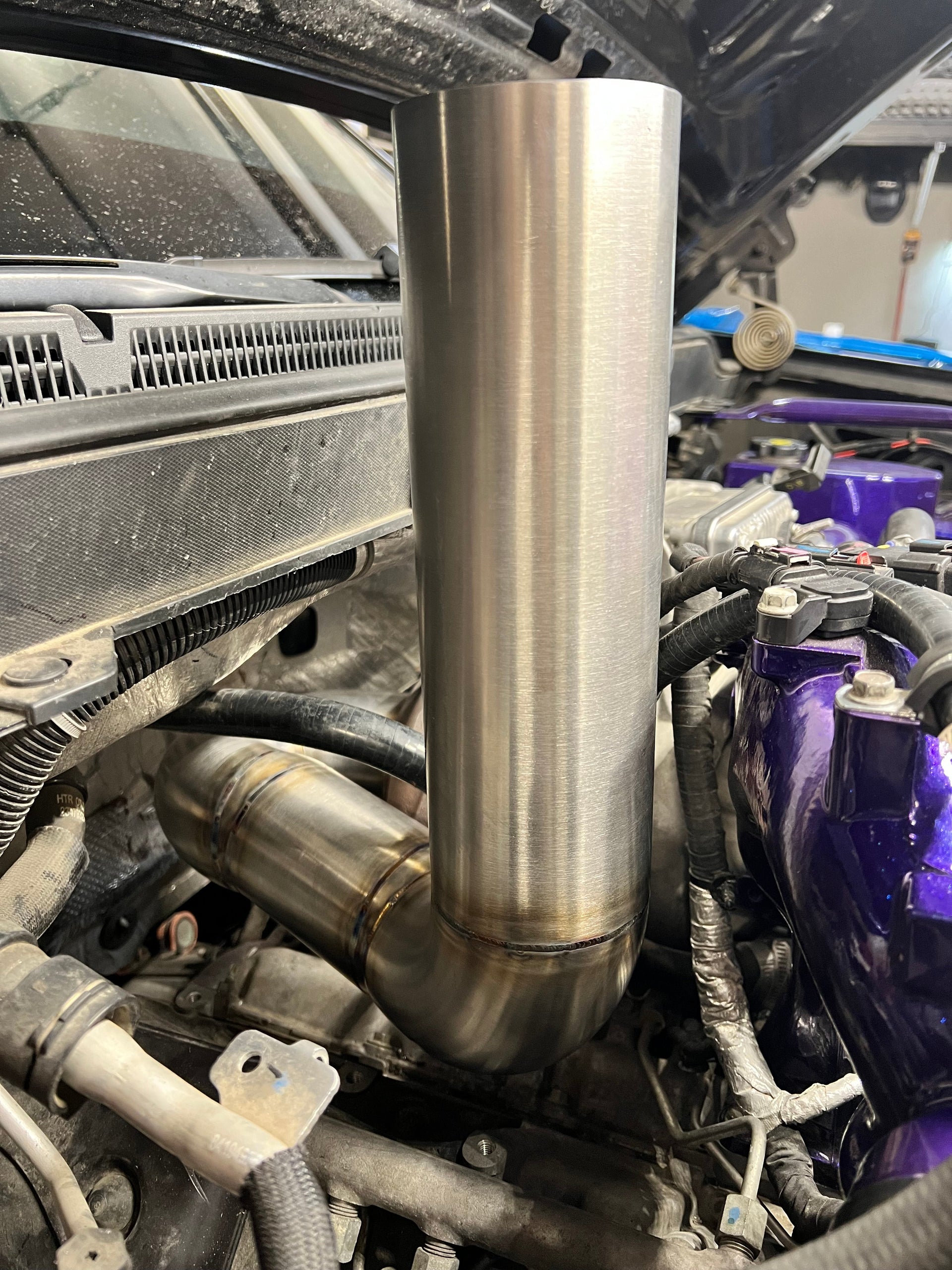

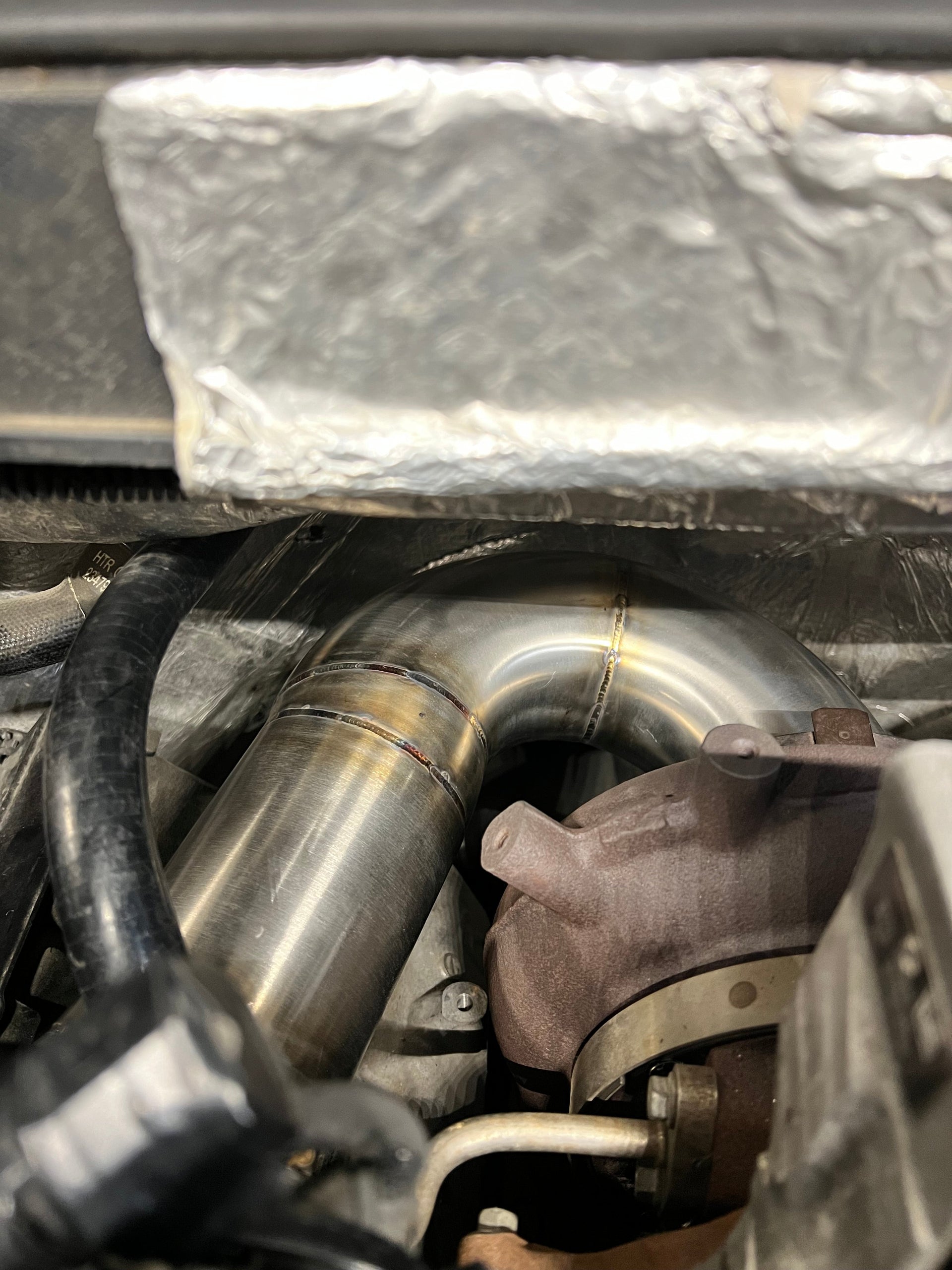

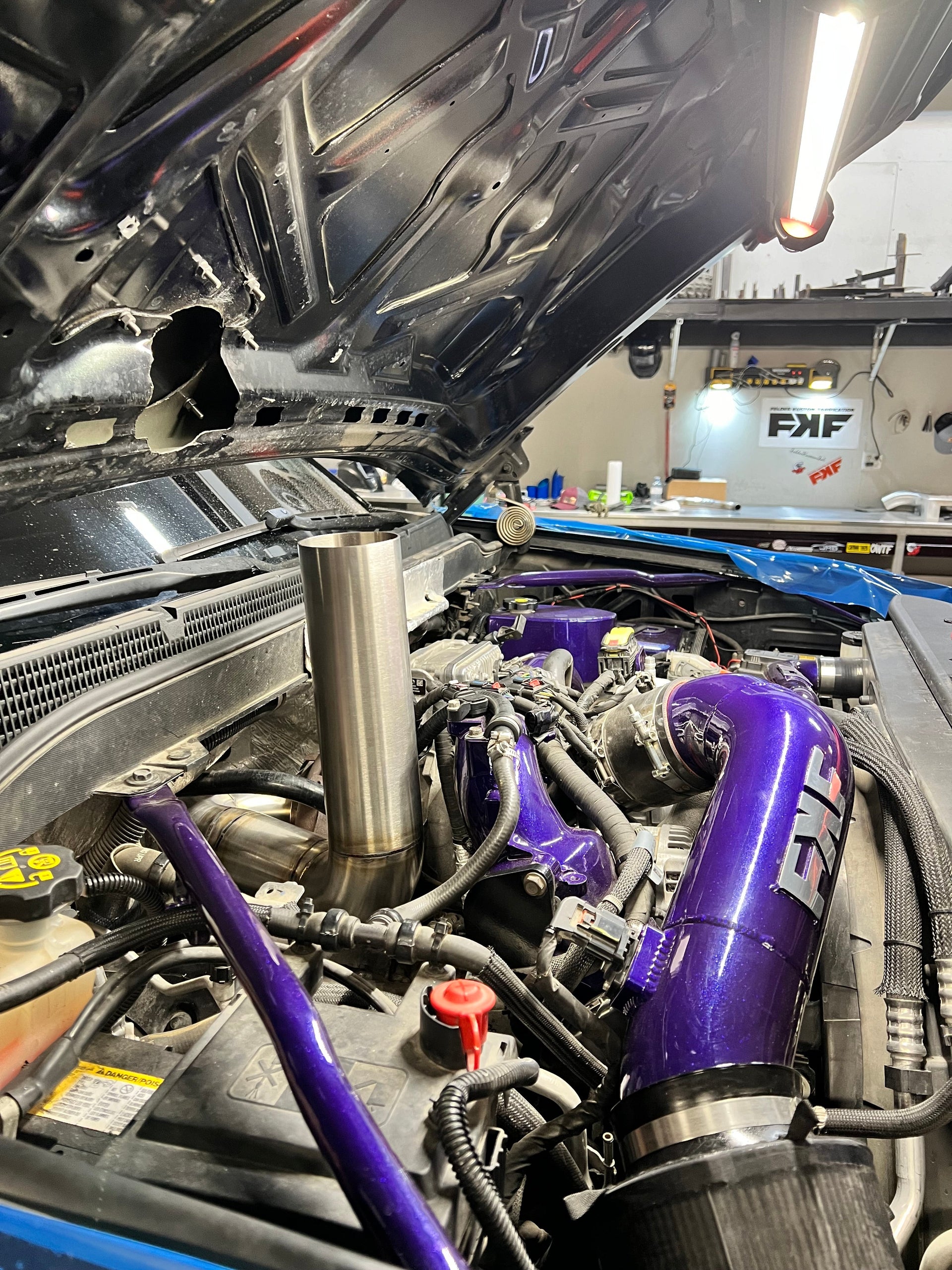

This stack is placed approximately 9" off centre to the passenger side of the truck so a hood stack tip clears the majority of cowlings on newer trucks. We picked a happy medium for hood tip placement and under-hood routing.

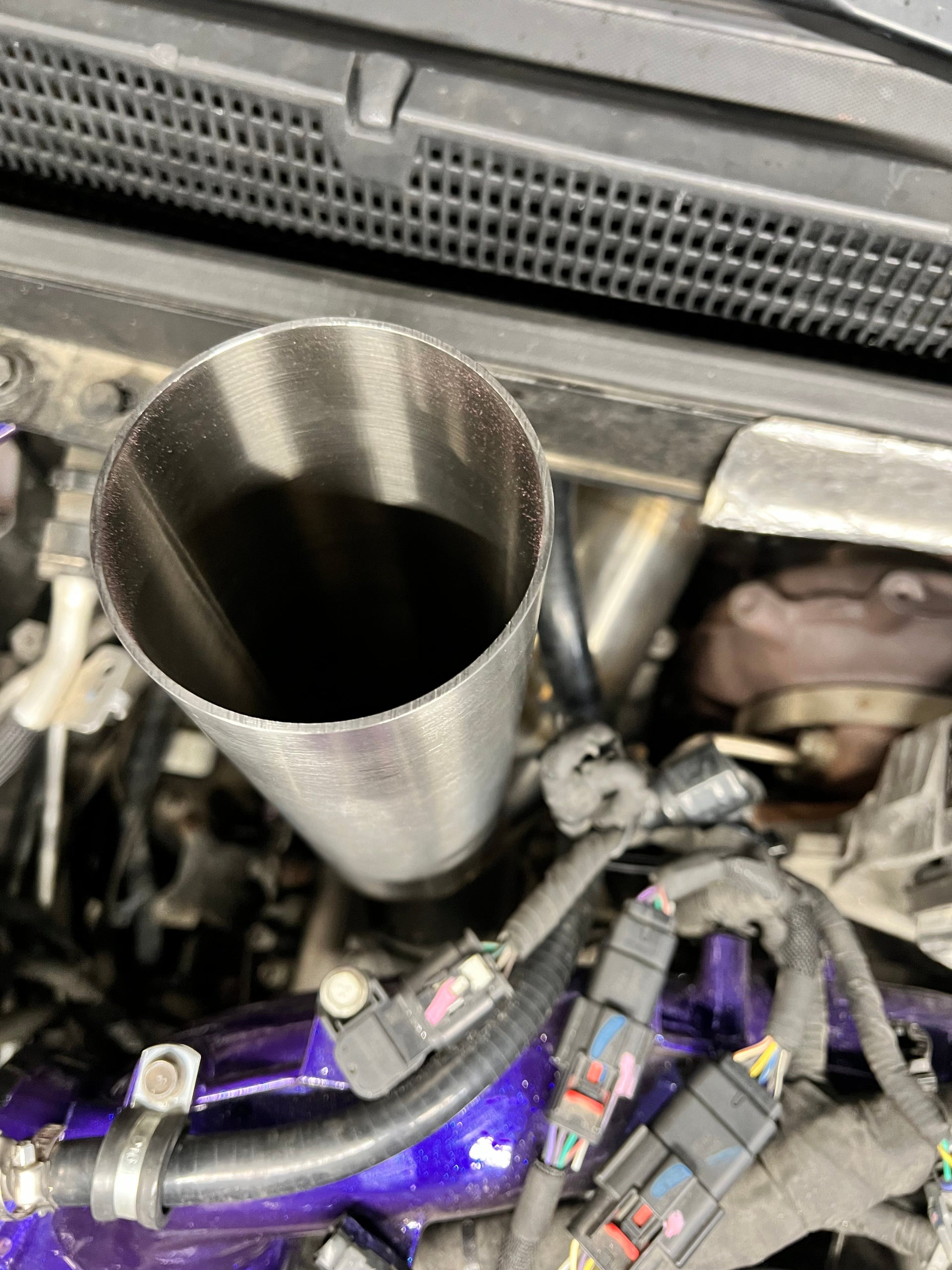

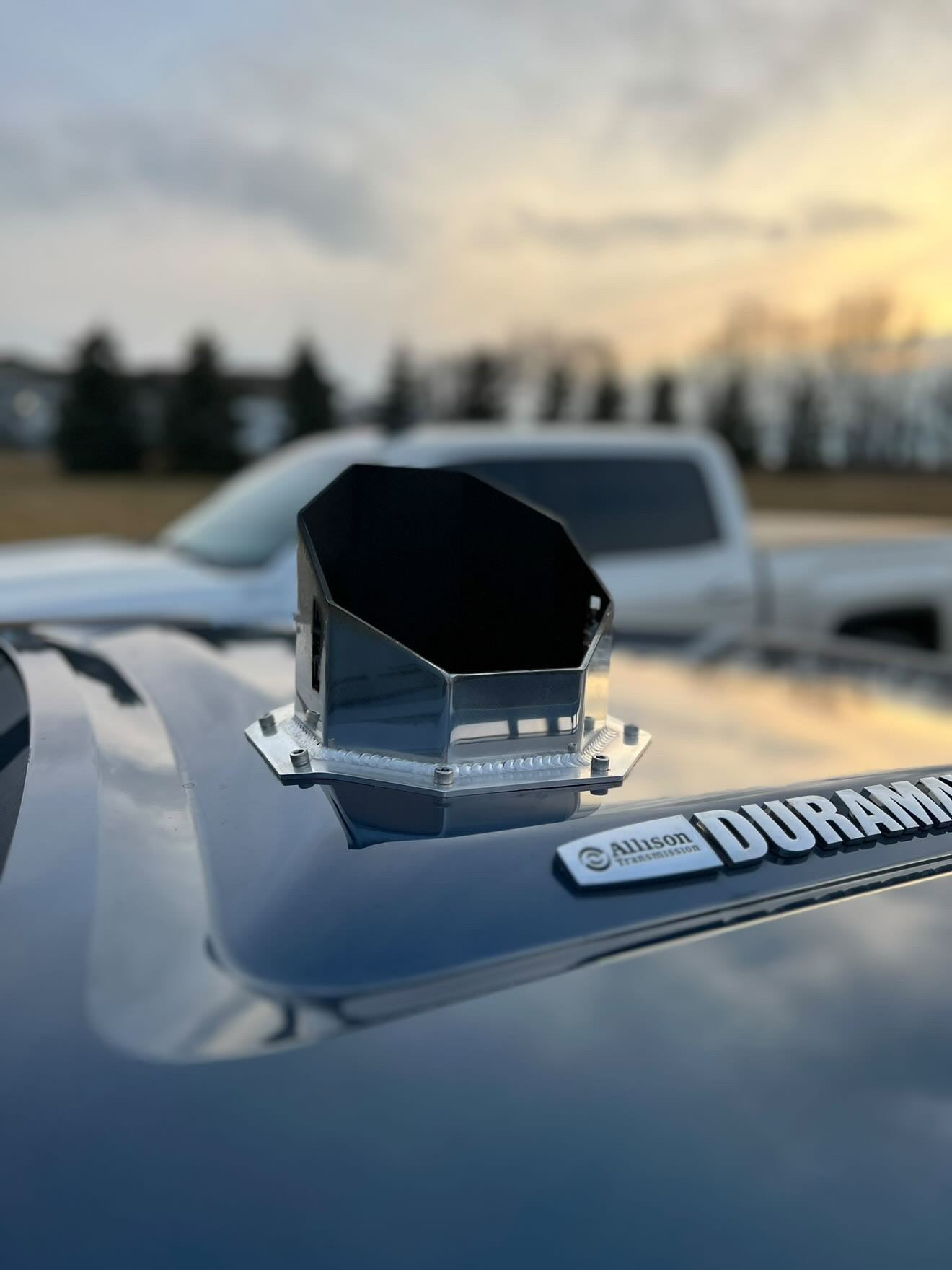

On 2017-2019 trucks the stack sits close to the rear cowling but clears the passenger side cowling. For that reason we recommend an octagon hood stack tip, since its tabs can be bent to accommodate cowlings close to the exit location. A photo is attached showing the approximate stack exit location on 2017-2019 trucks.
Install notes
- The ram air system will have to be modified or removed for access through the hood.
- We recommend securing your heater hoses to the side.
- Will not ship to California.
Fitment
2017-2025 GM 2500HD / 3500HD trucks with the 6.6L L5P Duramax.
Powder coat options
If you opt for a hood stack tip and a custom powder coat colour is desired, state the colour in the cart notes.
Colour link — https://www.prismaticpowders.com/canada
Frequently asked questions
What is the lead time on this L5P hood stack kit?
Please allow 7-14 business days for build time. This kit is hand built to order, not pulled from a shelf. Contact us before ordering if you need an exact date.
Which hood stack tip should I use?
We recommend the octagon tip, especially on 2017-2019 trucks, because its tabs can be bent to clear cowlings near the stack exit.
Do I have to remove the ram air system?
Yes. The ram air system will have to be modified or removed for the stack to pass through the hood.
Is this a delete pipe?
No. This is not a delete or defeat pipe. It is intended for offroad or race use only, and will not ship to California.
Where does the stack exit the hood?
Approximately 9" off centre to the passenger side, which clears the majority of cowlings on newer trucks.
