6.7 Powerstroke Turbo Power Limits: How Much HP Can the Stock Turbo Handle?
Most 2017–2019 6.7 Powerstroke owners hit the factory turbo's limit the same way: a tune goes on, the truck feels great empty, and then the EGT gauge climbs on the first long grade with a trailer. Here is where the stock turbo runs out and what changes when you upgrade it.
Quick answer: The factory GT37 is matched to 440–450 HP and has room for mild tuning. Most tuned trucks run out of efficient airflow somewhere in the high-500s HP range at the crank, and well before that under sustained towing. Past that point the turbo makes boost by spinning harder and pushing more heat, not by moving more useful air.
What "Running Out" Actually Looks Like
A turbo rarely fails the moment it is pushed past its comfortable range. It gets less efficient first. On a 6.7 Powerstroke that shows up as:
- EGTs that climb and do not settle on long pulls under load
- Power that flattens near the top of the rev range instead of pulling through
- More drive pressure in the exhaust manifold than boost in the intake, which costs efficiency and adds heat
- Higher shaft speeds for the same boost, which is what shortens a turbo's life over time
Stock Turbo Headroom by Use
| Use | Stock turbo |
|---|---|
| Stock calibration | Well within its range |
| Mild tune, light towing | Generally comfortable |
| Mild tune, frequent heavy towing | EGTs become the limit on long grades |
| Aggressive tune, more fuel | Airflow is the limit; time to upgrade |
These are general patterns, not hard numbers. Altitude, ambient temperature, trailer weight, fuelling and how the tune commands the vanes all move the line.
Why Towing Hits the Limit First
A peak power figure is made in seconds. Towing asks the turbo to hold high load for minutes at a time. Heat builds in the turbine housing, the valley and the charge air, and the margin the factory turbo has at a short peak is gone on a long climb. A truck that feels fine at the drag strip can still be out of turbo on a mountain pass with 15,000 lb behind it.
What an Upgrade Changes

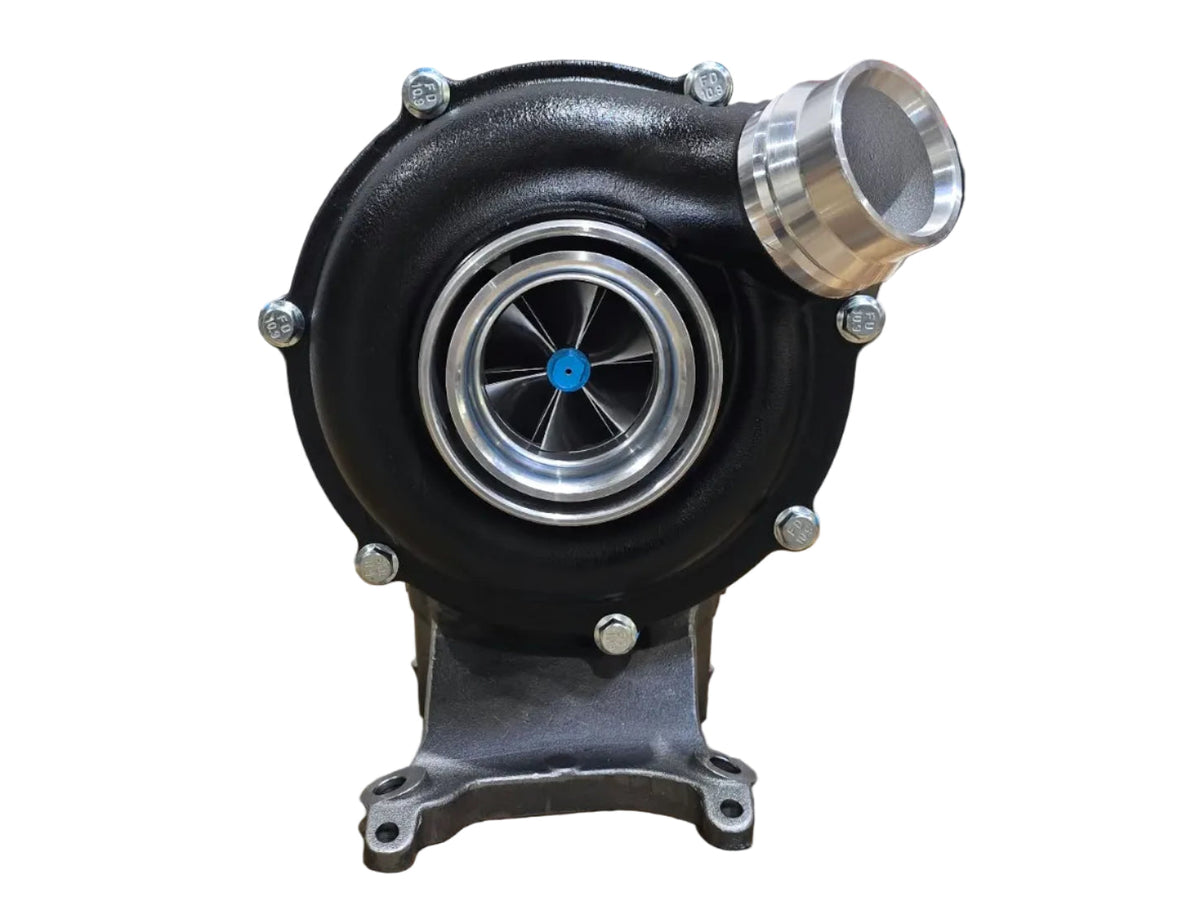

A larger, well-matched turbo moves more air at the same boost and lower shaft speed. That gives the truck back the margin the stock turbo loses as fuel goes up. The TNT 63.5/62 drop-in steps the compressor inducer from 61mm (2.40") to 63.5mm (2.50") with a 6+6 wheel and pairs it with a 10-blade mixed-flow turbine. It is rated to:
- 650 HP with factory emissions equipment in place, with tuning
- Up to 750 HP in off-road competition builds, with tuning
Turbo Is Only One Part of the Limit
Fuel supply, tuning, intercooling and the transmission all set limits too. See 6.7 Powerstroke Supporting Mods for Towing & Power for what typically needs attention alongside a turbo upgrade, and the 6.7 Powerstroke Turbo Upgrades guide for the full picture.
Frequently Asked Questions
How much horsepower can the stock 6.7 Powerstroke turbo handle?
It is matched to the factory 440–450 HP and handles mild tuning. Most tuned trucks run out of efficient airflow in the high-500s HP range at the crank, and sooner under sustained towing.
What is the first sign the stock turbo is out of air?
EGTs that climb and keep climbing on a long pull under load, usually alongside power that flattens at the top end.
Will a bigger turbo lower my EGTs?
Usually, on a tuned truck. A turbo that moves more air at the same boost cools combustion and reduces drive pressure. Fuelling and tuning still decide where EGTs end up.
Can I add a turbo without tuning?
Tuning is required to reach the rated power of an upgraded turbo and is strongly recommended for boost and vane control.
Power ratings on this page are quoted in crank horsepower (HP). Figures previously published in wheel horsepower (WHP) have been restated using our in-house tested conversion — the hardware and its capability are unchanged.
