9 Blade vs 10 Blade Turbos on the 6.7 Powerstroke
"9 blade" and "10 blade" come up constantly in 6.7 Powerstroke turbo discussions. The number refers to the blades on the turbine wheel, the exhaust side of the turbo. It does change how a turbo behaves, but far less than the marketing around it suggests. Here is what blade count does and what matters more.
Quick answer: Fewer turbine blades generally means less blockage and more flow at high load, with the well-known whistle as a side effect. More blades give the exhaust more surface to push on, which helps response at lower flow. Wheel size, trim, mixed-flow versus radial design and the turbine housing matter more than the count alone.
What Turbine Blade Count Changes
- Flow. Every blade takes up some of the passage area. Fewer blades leave more open area, which helps the turbine pass exhaust at high load with less back pressure.
- Response. More blades catch more of the exhaust energy at low flow, which helps the wheel accelerate when the engine is not making much exhaust yet.
- Sound. Lower blade counts tend to produce the high-pitched whistle that many owners want. The sound is a by-product of the wheel design, not a performance measure.
What Matters More Than the Count
| Factor | Why it matters |
|---|---|
| Inducer and exducer size | Sets how much exhaust the wheel can flow and where it is efficient |
| Trim (inducer to exducer ratio) | Shifts the balance between response and top-end flow |
| Mixed flow vs radial | Mixed-flow wheels take exhaust in at an angle and recover energy better in transient conditions |
| Turbine housing and vane design | On a VGT, the vanes decide how hard exhaust hits the wheel at each operating point |
| Compressor matching | A turbine that outflows or underdrives its compressor wastes both |
Where "9 Blade" Searches Usually Come From
Much of the "9 blade" talk on the 6.7 Powerstroke comes from aftermarket turbines for 2011–2019 trucks, including retrofit kits that convert 2011–2014 trucks to the later GT37 style. If you have a 2011–2014 truck, start by confirming which turbo you have. See What Turbo Is on a 2017–2019 6.7 Powerstroke? for the year-by-year breakdown.
The TNT 63.5/62 Turbine

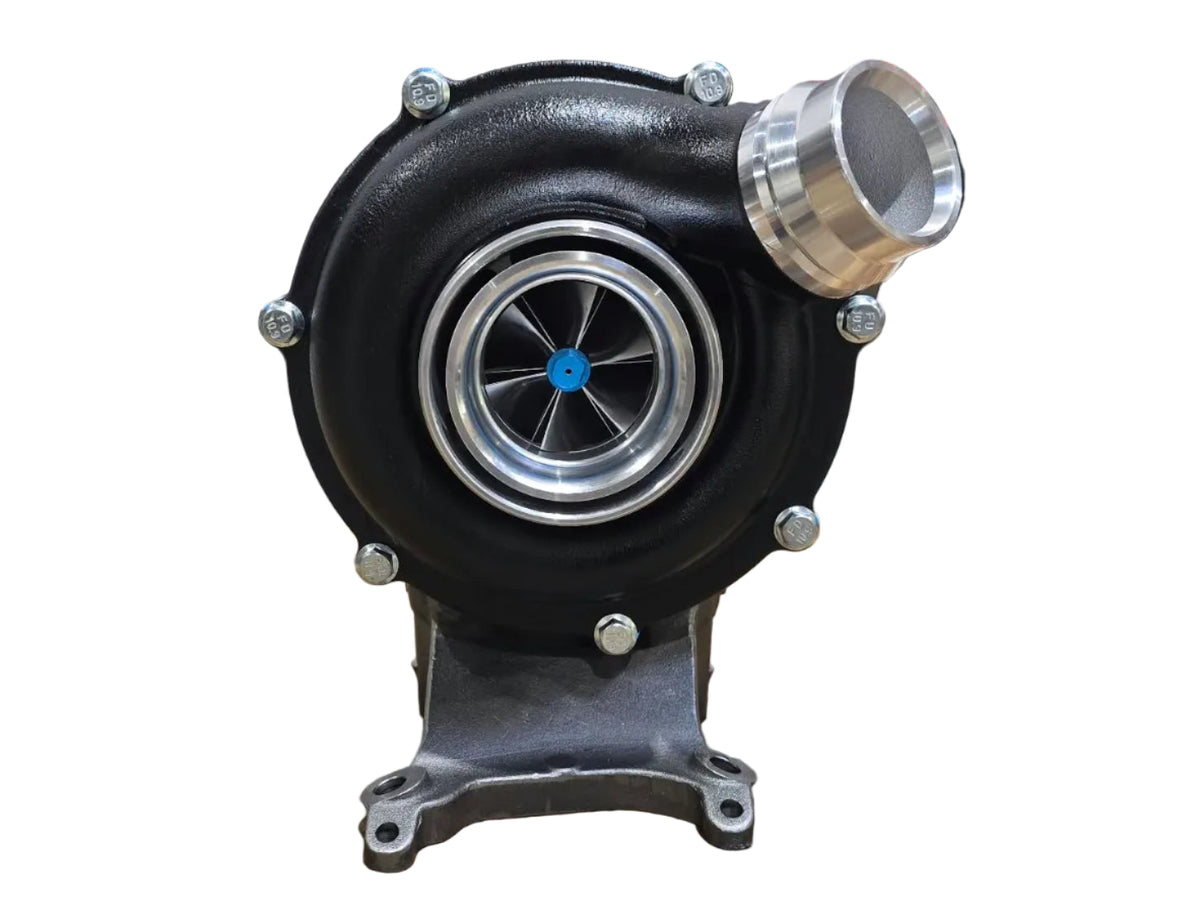

The TNT 63.5/62 drop-in for 2017–2019 F-250 to F-550 trucks uses a 10-blade mixed-flow turbine wheel measuring 72/66 x 62mm. The design choice is aimed at how these trucks are actually used:
- The mixed-flow profile recovers energy efficiently when pulling away loaded, climbing grades and coming back into boost after a shift
- The 10-blade count keeps low-flow response strong for towing while still supporting the flow needed at the top end
- It is paired with a 63.5mm (2.50") 6+6 compressor, so both sides of the turbo are sized for the same 650 to 750 HP target
For how the whole turbo compares with the factory unit, see the 6.7 Powerstroke Turbo Upgrades guide.
Frequently Asked Questions
Is a 9 blade or 10 blade turbo better on a 6.7 Powerstroke?
Neither is better on its own. Fewer blades favour high-load flow and whistle; more blades favour response at lower flow. Wheel size, trim, mixed-flow design and the turbine housing matter more than the count.
Why do 9 blade turbos whistle?
The whistle comes from how exhaust passes through a lower blade count wheel. It is a side effect of the design and does not by itself indicate more power.
What turbine wheel does the TNT 63.5/62 use?
A 10-blade mixed-flow turbine wheel measuring 72/66 x 62mm, paired with a 63.5mm (2.50") 6+6 compressor wheel.
Does blade count affect towing?
It contributes. Response at low exhaust flow matters when pulling away loaded and climbing grades, which is why towing-focused turbines often favour higher blade counts and mixed-flow profiles.
