Do you have a daily driven street machine, or are you more of a weekend warrior? Either way, this journal bearing turbo is the right choice for you. The TNT480 80mm T6 will pump out a street-able 1345-1405hp on your 6.0L or smaller pushrod V8.

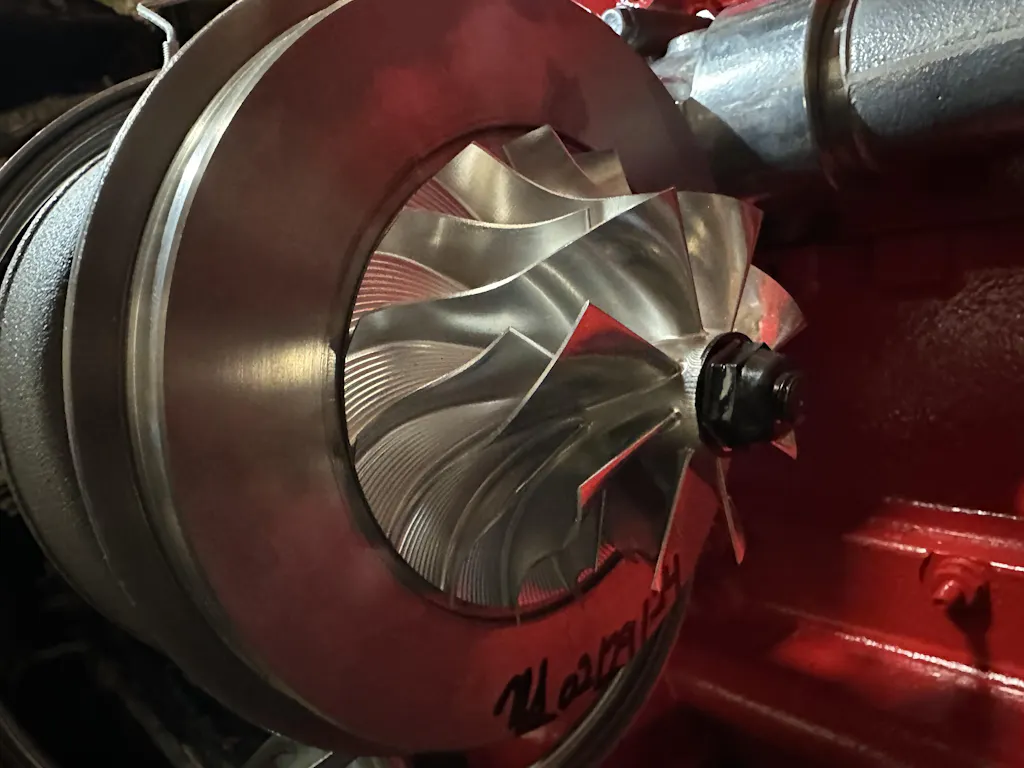

This turbo has our newest compressor wheel and our 96x88 or 103x92 turbine wheel. The TNT turbine wheel is the result of our extensive research over the past several years, which has resulted in being able to alleviate some of the backpressure associated with maxing out the standard BW 96x88 design.

What does this mean for you? It will get your rotor assembly up to speed faster and not be out of breath as early as our previous models. You can expect to see impressive gains of 115-235hp under 5000rpm and higher peak horsepower over some of our competitors that we have dyno tested back to back.

Key Specs

• 80mm compressor wheel, journal bearing
• 96x88 or 103x92 turbine wheel options
• T6 flange, multiple A/R options
• Rated 1345-1405hp on sub-6.0L pushrod V8 applications
• Built to order

Replaces / Cross-Reference

The TNT480 is a direct bolt-on replacement for S480 turbochargers and other 80mm S400-frame units. Built on the same 400 frame, it uses the mounting hardware you already have:

• Turbine inlet: T6 — fits your existing T6 manifold
• Turbine discharge: 5.75" (146mm) marmon — same flange and 99502-0588 clamp
• Compressor discharge: V-band, sized to your charge pipe
• Oil drain: 50.8mm (2.00") bolt centre, 12AN port — same drain

Our 96x88 and 103x92 turbine wheels are our own designs, developed to reduce the backpressure associated with maxing out standard offerings. Fitment is equivalent; airflow character will differ, generally in your favour.

Full model mapping: S400 replacement cross-reference. Housing selection: S400 turbine housing and A/R guide.

Frequently Asked Questions

Is the TNT480 a direct replacement for an S480?

Yes. The TNT480 is built on the 400 frame, so it is a direct bolt-on replacement for S480 turbochargers. Your T6 manifold, 5.75" marmon downpipe flange, clamp, compressor discharge and 12AN oil drain all carry over.

What is the TNT480 T6 rated for?

A street-able 1345-1405hp on a 6.0L or smaller pushrod V8, with 115-235hp gains under 5000rpm versus comparable competitor turbines.

What turbine wheel options are available?

This turbo is available with either a 96x88 or a 103x92 turbine wheel.

Power ratings on this page are quoted in crank horsepower (HP). Figures previously published in wheel horsepower (WHP) have been restated using our in-house tested conversion — the hardware and its capability are unchanged.

BorgWarner and S400 are trademarks of BorgWarner Inc. Black Sheep Industries Inc. and True North Turbos are not affiliated with or endorsed by BorgWarner Inc. Model designations are used for identification and fitment reference only.
